 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

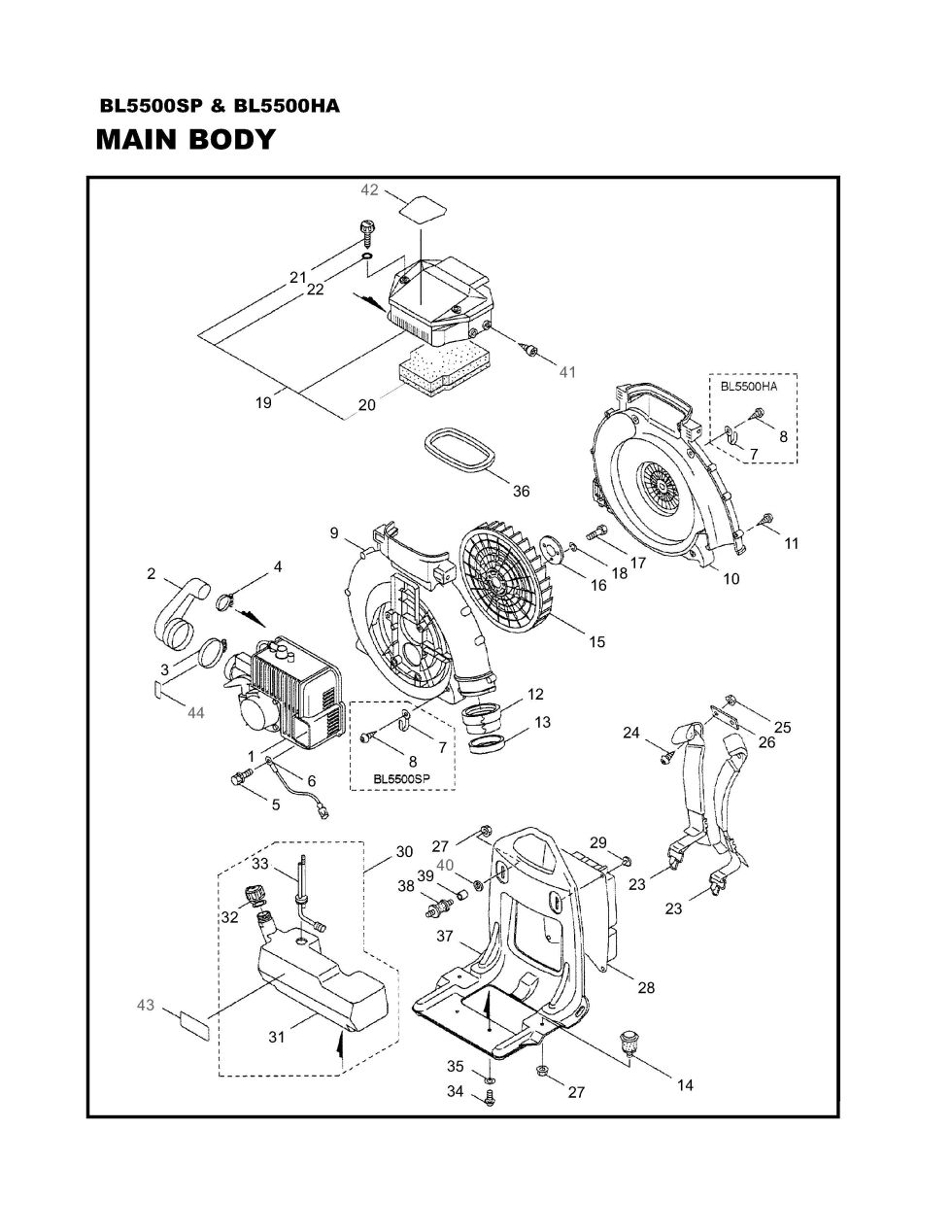

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 634345 | 634345 - ENGINE SHROUD |
$96.99
|
|
| 2 | 121753 | 121753 - INLET PIPE |
$28.99
|
|
| 3 | 121755 | 121755 - BAND |
$15.99
|
|
| 4 | 119684 | 119684 - HOSE BAND |
$7.99
|
|
| 5 | 092543 | 092543 - BOLT |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 103550 | 103550 - CLAMP |
$2.99
|
|
| 9 | 120512 | 120512 - FAN CASE |
$93.99
|
|
| 10 | 119387 | 119387 - FAN CASE (S) |
$87.99
|
|
| 11 | 118530 | 118530 - USE: 89538 |
$2.99
|
|
| 12 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 13 | 119161 | 119161 - BAND |
$7.99
|
|
| 14 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 15 | 118724 | 118724 - FAN |
$68.99
|
|
| 16 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 17 | 119558 | 119558 - BOLT |
$2.99
|
|
| 18 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 19 | 634055 | 634055 - AIR FILTER ASSY W/DE |
$50.99
|
|
| 21 | 114463 | 114463 - KNOB |
$8.99
|
|
| 22 | 014187 | 014187 - O-RING |
$2.99
|
|
| 23 | 120625 | 120625 - KNAPSACK BAND |
$30.99
|
|
| 25 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 27 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 28 | 119177 | 119177 - PAD |
$31.99
|
|
| 29 | 840543 | 840543 - NLA PAD RETAINER |
$2.99
|
|
| 30 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 31 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 32 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 33 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 34 | 081414 | 081414 - SCREW |
$2.99
|
|
| 35 | 015479 | 015479 - WASHER |
$2.99
|
|
| 36 | 120536 | 120536 - PACKING |
$19.99
|
|
| 38 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 39 | 120616 | 120616 - SPACER |
$2.99
|
|
| 40 | 120617 | 120617 - WASHER |
$2.99
|
|
| 41 | 120077 | 120077 - SCREW |
$2.99
|
|
| 42 | 121757 | 121757 - LABEL |
$19.99
|
|
| 43 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 44 | 119613 | 119613 - LABEL |
$5.99
|
