Model Type:
Model:
Assembly:

All Diagrams for this Model

Accessories

Accessories

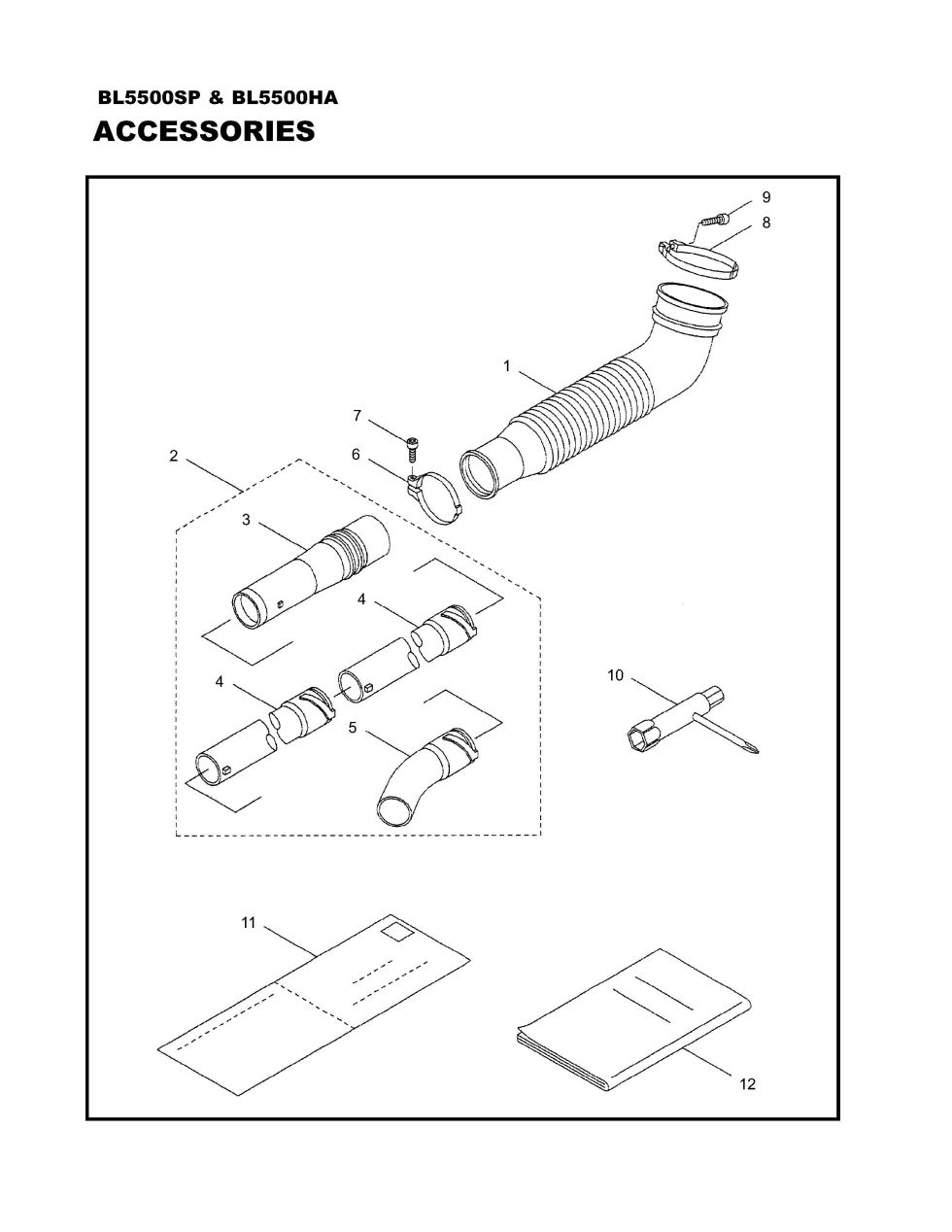

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL5500SP and BL5500HA. You have selected the Accessories diagram for the Maruyama BL5500SP and BL5500HA Blowers. Below you will find an interactive part diagram for the BL5500SP and BL5500HA Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL5500SP and BL5500HA parts not shown in this diagram you may select from one of the other BL5500SP and BL5500HA part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 119186 119186 - FLEXIBLE PIPE
$34.99
2 121238 121238 - BLOWER TUBE ASSY
$27.99
3 121242 121242 - SWIVEL PIPE
$28.99
4 121243 121243 - BLOWER TUBE
$30.99
5 121244 121244 - BENT PIPE
$21.99
6 119525 119525 - HOSE BAND
$5.99
7 081415 081415 - SCREW M5X.8X16
$2.99
8 119523 119523 - HOSE BAND
$5.99
9 081417 081417 - SCREW
$2.99
