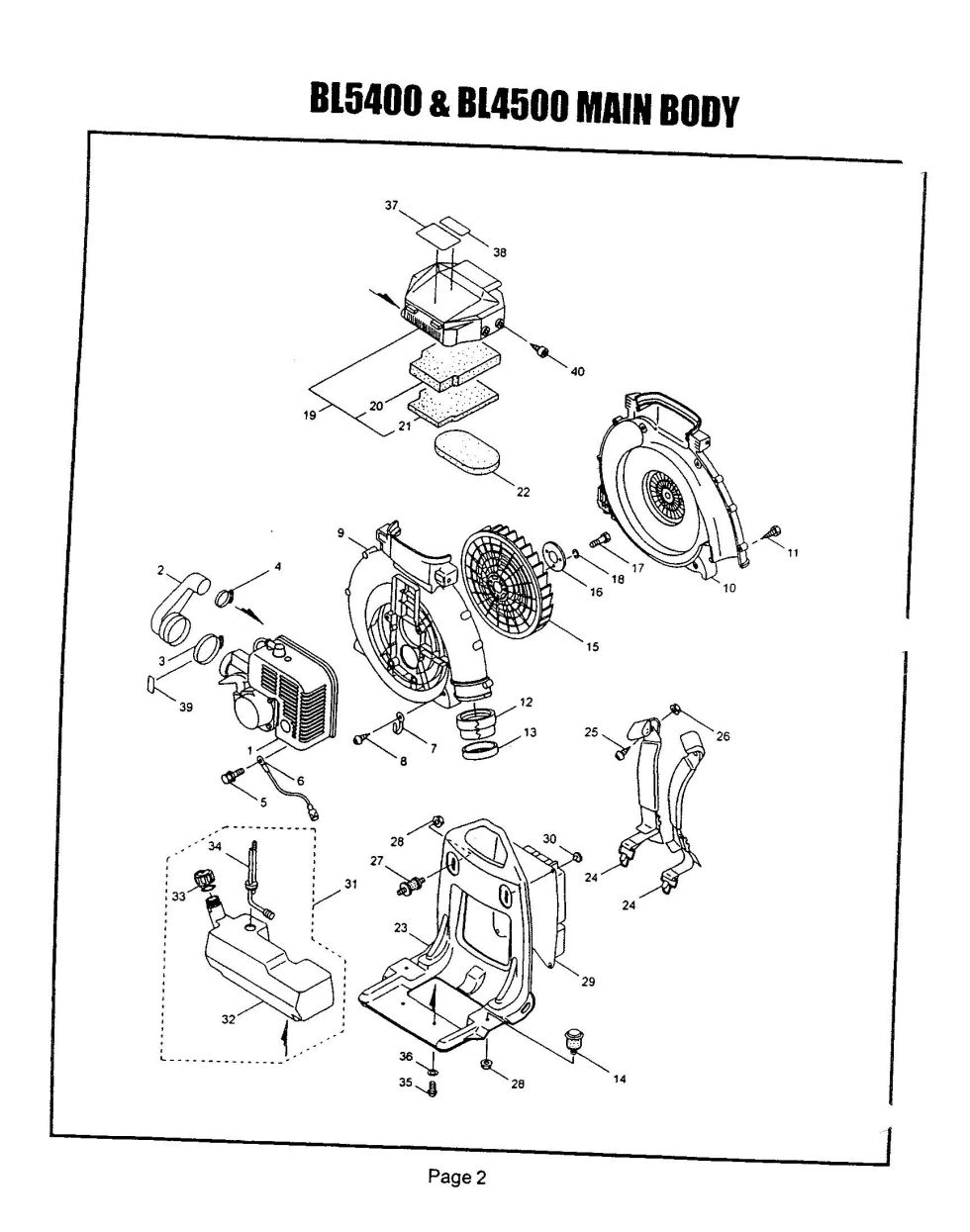

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4500HA, BL4500SP, BL5400HA AND BL5400SP. You have selected the Main Body diagram for the Maruyama BL4500HA, BL4500SP, BL5400HA AND BL5400SP Blowers. Below you will find an interactive part diagram for the BL4500HA, BL4500SP, BL5400HA AND BL5400SP Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4500HA, BL4500SP, BL5400HA AND BL5400SP parts not shown in this diagram you may select from one of the other BL4500HA, BL4500SP, BL5400HA AND BL5400SP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 (BL4500) | 119384 | 119384 - MUFFLER COVER |
$67.99
|
|
| 1 (BL5400) | 120065 | 120065 - SHROUD |
$56.99
|
|
| 2 | 119616 | 119616 - INLET PIPE |
$28.99
|
|
| 3 | 119685 | 119685 - NLA HOSE BAND |
$8.99
|
|
| 4 | 119684 | 119684 - HOSE BAND |
$7.99
|
|
| 5 | 092543 | 092543 - BOLT |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 103550 | 103550 - CLAMP |
$2.99
|
|
| 9 (BL4500) | 119386 | 119386 - NLA FAN CASE (E) |
$76.99
|
|
| 9 (BL5400) | 120512 | 120512 - FAN CASE |
$93.99
|
|
| 10 | 119387 | 119387 - FAN CASE (S) |
$87.99
|
|
| 11 | 118530 | 118530 - USE: 89538 |
$2.99
|
|
| 12 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 13 | 119161 | 119161 - BAND |
$7.99
|
|
| 14 | 114454 | 114454 - USE: 120615 |
$11.99
|
|
| 15 | 118724 | 118724 - FAN |
$68.99
|
|
| 16 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 17 | 119558 | 119558 - BOLT |
$2.99
|
|
| 18 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 19 | 119364 |
119364 - AIR FILTER ASSY. W/ (obsolete) use part #634055 |
$50.99
|
|
| 20 | 119664 |
119664 - NS ELEMENT (obsolete) use part #122951 |
$24.99
|
|
| 21 | 119665 |
119665 - NS ELEMENT (obsolete) use part #122951 |
$24.99
|
|
| 22 | 120536 | 120536 - PACKING |
$19.99
|
|
| 24 | 119668 |
119668 - USE: 120625 (obsolete) use part #120625 |
$30.99
|
|
| 26 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 27 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 28 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 29 | 119177 | 119177 - PAD |
$31.99
|
|
| 30 | 840543 | 840543 - NLA PAD RETAINER |
$2.99
|
|
| 31 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 32 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 33 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 34 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 35 | 081414 | 081414 - SCREW |
$2.99
|
|
| 36 | 015479 | 015479 - WASHER |
$2.99
|
|
| 37 (BL4500HA) | 119607 | 119607 - USE: 840648 |
$2.99
|
|
| 37 (BL4500SP) | 119606 | 119606 - USE: 840649 |
$2.99
|
|
| 37 (BL5400HA) | 120068 | 120068 - DECAL |
$2.99
|
|
| 37 (BL5400SP) | 120073 | 120073 - NLA LABEL |
$2.99
|
|
| 38 | 107483 | 107483 - USE: 120675 |
$2.99
|
|
| 39 | 119613 | 119613 - LABEL |
$5.99
|
|
| 40 | 082708 | 082708 - TAPPING SCREW |
$2.99
|
