 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
.jpg) |

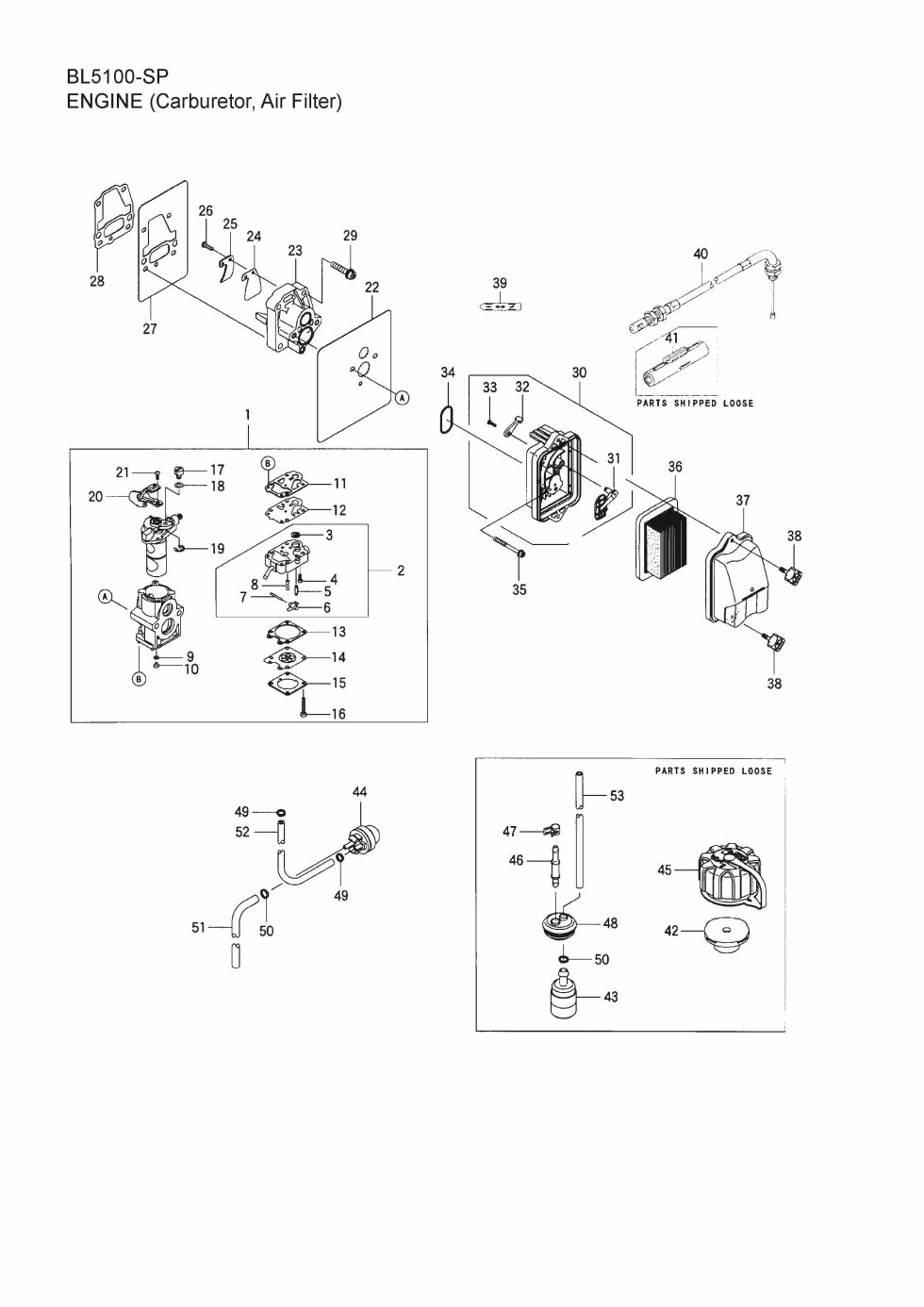

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 649701 | 649701 - CARBURETOR |
$184.99
|
|
| 2 | 649346 | 649346 - BODY |
$72.99
|
|
| 3 | 624430 | 624430 - FILTER |
$23.99
|
|
| 4 | 624432 | 624432 - SCREW |
$11.99
|
|
| 5 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 7 | 624434 | 624434 - SPRING |
$13.99
|
|
| 9 | 577182 | 577182 - USE: 261871 |
$8.99
|
|
| 10 | 649703 | 649703 - MAIN JET #55 |
$19.99
|
|
| 11 | 634350 | 634350 - GASKET |
$18.99
|
|
| 12 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 13 | 649339 | 649339 - GASKET |
$13.99
|
|
| 14 | 634357 | 634357 - DIAPHRAGM |
$29.99
|
|
| 15 | 649343 | 649343 - COVER |
$19.99
|
|
| 16 | 649348 | 649348 - SCREW |
$5.99
|
|
| 17 | 598415 | 598415 - ARM |
$21.99
|
|
| 18 | 624532 | 624532 - WASHER |
$7.99
|
|
| 19 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 20 | 649338 | 649338 - BRACKET |
$29.99
|
|
| 21 | 577179 | 577179 - SCREW |
$8.99
|
|
| 22 | 649341 | 649341 - USE: 412446 |
$17.99
|
|
| 24 | 649342 | 649342 - REED VALVE |
$15.99
|
|
| 25 | 649347 | 649347 - STOPPER |
$2.99
|
|
| 26 | 649350 | 649350 - SCREW |
$2.99
|
|
| 27 | 649700 | 649700 - GASKET |
$8.99
|
|
| 28 | 649699 | 649699 - GASKET |
$8.99
|
|
| 29 | 577361 | 577361 - SCREW |
$2.99
|
|
| 30 | 649705 | 649705 - AIR FILTER CASE ASSY |
$38.99
|
|
| 31 | 649708 | 649708 - VALVE |
$11.99
|
|
| 32 | 649355 | 649355 - LEVER |
$11.99
|
|
| 33 | 628550 | 628550 - SCREW |
$2.99
|
|
| 34 | 649359 | 649359 - USE: 423450 |
$2.99
|
|
| 35 | 944305 | 944305 - SCREW |
$2.99
|
|
| 36 | 649704 | 649704 - USE: 419565 |
$21.99
|
|
| 37 | 649707 | 649707 - USE: 423448 |
$27.99
|
|
| 38 | 649360 |
649360 - USE: 419574 (obsolete) use part #419574 |
$13.99
|
|
| 39 | 598438 | 598438 - NLA LABEL |
$2.99
|
|
| 40 | 649337 | 649337 - THROTTLE CABLE |
$27.99
|
|
| 41 | 212250 | 212250 - CASE |
$5.99
|
|
| 42 | 649362 |
649362 - USE: 630564 (obsolete) use part #425442 |
$29.99
|
|
| 43 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 44 | 649363 |
649363 - USE: 415374 (obsolete) use part #415374 |
$30.99
|
|
| 45 | 649364 | 649364 - FUEL CAP |
$26.99
|
|
| 46 | 632199 | 632199 - JOINT |
$7.99
|
|
| 47 | 944177 | 944177 - CLAMP |
$2.99
|
|
| 48 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 49 | 649365 | 649365 - CLAMP |
$2.99
|
|
| 50 | 649366 | 649366 - CLAMP |
$2.99
|
|
| 51 | 649367 | 649367 - USE: 415375 |
$7.99
|
|
| 52 | 649368 | 649368 - TUBE |
$2.99
|
|
| 53 | 649369 | 649369 - TUBE |
$20.99
|
