 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

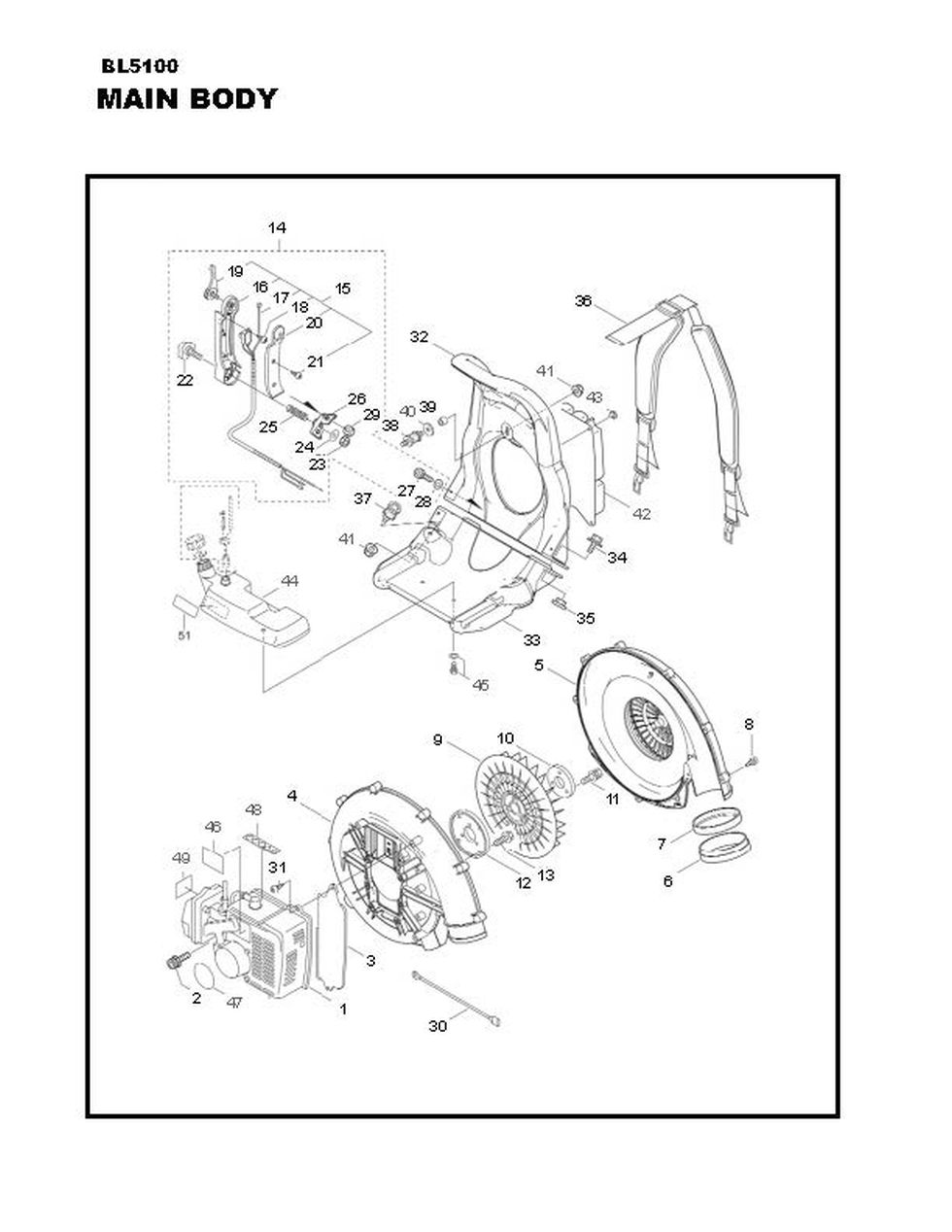

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 125623 | 125623 - NS ENGINE TK45 |
$511.99
|
|
| 2 | 125588 | 125588 - BOLT |
$2.99
|
|
| 3 | 125624 | 125624 - GASKET |
$15.99
|
|
| 4 | 125625 | 125625 - FAN CASE (ENGINE SID |
$53.99
|
|
| 5 | 125410 | 125410 - FAN CASE / FRAME SID |
$46.99
|
|
| 6 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 7 | 119161 | 119161 - BAND |
$7.99
|
|
| 8 | 089538 | 089538 - SCREW |
$2.99
|
|
| 9 | 118724 | 118724 - FAN |
$68.99
|
|
| 10 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 11 | 189369 | 189369 - BOLT |
$2.99
|
|
| 12 | 125628 | 125628 - ADAPTOR |
$48.99
|
|
| 13 | 125629 | 125629 - BOLT |
$2.99
|
|
| 14 | 125421 | 125421 - THROTTLE ASSY |
$57.99
|
|
| 15 | 125445 | 125445 - ARM ASSY |
$55.99
|
|
| 16 | 123497 | 123497 - ARM |
$29.99
|
|
| 17 | 125446 | 125446 - THROTTLE WIRE |
$41.99
|
|
| 18 | 120502 | 120502 - TAPPING SCREW |
$2.99
|
|
| 19 | 125783 | 125783 - THROTTLE LEVER |
$20.99
|
|
| 20 | 123498 | 123498 - COVER |
$19.99
|
|
| 21 | 120517 | 120517 - TAPPING SCREW |
$2.99
|
|
| 22 | 110271 | 110271 - BOLT |
$16.99
|
|
| 23 | 107581 | 107581 - NYLON NUT |
$2.99
|
|
| 24 | 065413 | 065413 - WASHER |
$2.99
|
|
| 25 | 120721 | 120721 - SPRING |
$2.99
|
|
| 26 | 125423 | 125423 - HOLDER |
$8.99
|
|
| 27 | 125589 | 125589 - CAP SCREW |
$2.99
|
|
| 28 | 015479 | 015479 - WASHER |
$2.99
|
|
| 29 | 125621 | 125621 - NUT |
$2.99
|
|
| 30 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 31 | 124971 | 124971 - TAPPING SCREW |
$2.99
|
|
| 32 | 125427 | 125427 - BACKPACK FRAME A |
$37.99
|
|
| 33 | 125429 | 125429 - BACKPACK FRAME B |
$35.99
|
|
| 34 | 092506 | 092506 - BOLT |
$2.99
|
|
| 35 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 36 | 125432 | 125432 - SHOULDER STRAP ASSY |
$33.99
|
|
| 37 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 38 | 101877 | 101877 - BUFFER |
$21.99
|
|
| 39 | 120616 | 120616 - SPACER |
$2.99
|
|
| 40 | 120617 | 120617 - WASHER |
$2.99
|
|
| 42 | 119177 | 119177 - PAD |
$31.99
|
|
| 43 | 100749 | 100749 - PAD RETAINER |
$2.99
|
|
| 44 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 45 | 125561 | 125561 - SCREW |
$2.99
|
|
| 46 | 125630 | 125630 - LABEL |
$2.99
|
|
| 47 | 123954 | 123954 - LABEL |
$2.99
|
|
| 48 | 266959 | 266959 - LABEL |
$6.99
|
|
| 49 | 125749 | 125749 - LABEL |
$2.99
|
