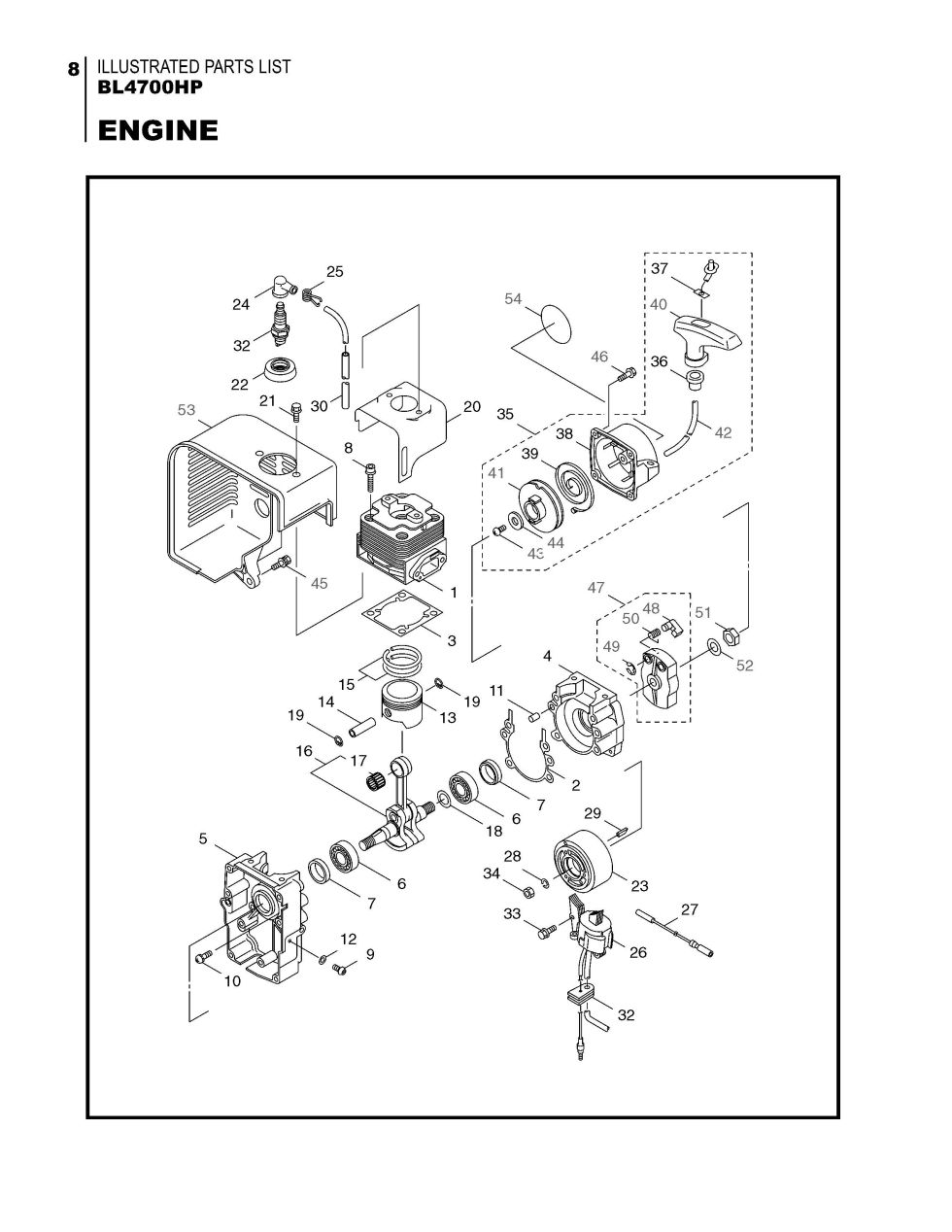

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4700HP. You have selected the Engine diagram for the Maruyama BL4700HP Blowers. Below you will find an interactive part diagram for the BL4700HP Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4700HP parts not shown in this diagram you may select from one of the other BL4700HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 626809 | 626809 - CYLINDER |
$134.99
|
|
| 2 | 570248 | 570248 - GASKET |
$5.99
|
|
| 3 | 597282 | 597282 - GASKET, CYLINDER |
$11.99
|
|
| 4 | 570246 | 570246 - NLA CRANKCASE |
$162.99
|
|
| 5 | 570247 | 570247 - CRANKCASE |
$202.99
|
|
| 6 | 597283 | 597283 - BEARING |
$29.99
|
|
| 7 | 071320 | 071320 - OIL SEAL |
$19.99
|
|
| 8 | 597284 | 597284 - BOLT |
$8.99
|
|
| 9 | 944619 | 944619 - SCREW |
$2.99
|
|
| 10 | 599880 | 599880 - SCREW |
$2.99
|
|
| 11 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 12 | 943893 | 943893 - GASKET |
$2.99
|
|
| 13 | 634592 | 634592 - PISTON |
$68.99
|
|
| 14 | 599881 | 599881 - PIN, PISTON |
$23.99
|
|
| 15 | 943875 | 943875 - PISTON RING SET |
$34.99
|
|
| 16 | 626810 | 626810 - CRANKSHAFT ASSY |
$190.99
|
|
| 17 | 943281 | 943281 - NEEDLE BEARING |
$23.99
|
|
| 18 (T=0.1) | 597285 | 597285 - SHIM (0.10) |
$2.99
|
|
| 18 (T=0.2) | 597286 | 597286 - SHIM (0.20) |
$2.99
|
|
| 18 (T=0.4) | 597287 | 597287 - SHIM (0.40) |
$2.99
|
|
| 18 (T=0.6) | 597288 | 597288 - SHIM (0.60) |
$2.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 | 580182 | 580182 - SHROUD-ENGINE |
$19.99
|
|
| 21 | 626817 | 626817 - BOLT |
$6.99
|
|
| 22 | 573289 | 573289 - COVER |
$9.99
|
|
| 23 | 597291 | 597291 - FLYWHEEL |
$133.99
|
|
| 24 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 25 | 591533 | 591533 - SPRING |
$2.99
|
|
| 26 | 597262 | 597262 - IGNITION COIL |
$97.99
|
|
| 27 | 597263 | 597263 - LEAD WIRE |
$19.99
|
|
| 28 | 943924 | 943924 - WASHER |
$2.99
|
|
| 29 | 998409 | 998409 - KEY |
$12.99
|
|
| 30 | 998411 | 998411 - TUBE |
$2.99
|
|
| 32 | 597293 | 597293 - GROMMET |
$10.99
|
|
| 33 | 943457 | 943457 - BOLT |
$2.99
|
|
| 34 | 998410 | 998410 - NUT |
$6.99
|
|
| 35 | 579570 | 579570 - RECOIL STARTER ASSY |
$88.99
|
|
| 36 | 998438 | 998438 - ROPE GUIDE |
$17.99
|
|
| 37 | 944502 | 944502 - WASHER |
$8.99
|
|
| 38 | 579568 | 579568 - RECOIL CASE |
$31.99
|
|
| 39 | 572955 | 572955 - SPRING |
$31.99
|
|
| 40 | 998437 | 998437 - RECOIL STARTER HANDL |
$27.99
|
|
| 41 | 579571 | 579571 - RECOIL REEL |
$27.99
|
|
| 42 | 579572 | 579572 - ROPE |
$15.99
|
|
| 43 | 570720 | 570720 - SCREW |
$2.99
|
|
| 44 | 579574 | 579574 - WASHER |
$2.99
|
|
| 45 | 580184 | 580184 - SCREW |
$2.99
|
|
| 46 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
|
| 47 | 579569 | 579569 - STARTER PAWL ASSY |
$18.99
|
|
| 48 | 572938 | 572938 - PAWL |
$17.99
|
|
| 49 | 013525 | 013525 - E-RING |
$2.99
|
|
| 50 | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 51 | 943173 | 943173 - NUT |
$2.99
|
|
| 52 | 071190 | 071190 - WASHER |
$2.99
|
|
| 53 | 122730 | 122730 - SHROUD |
$58.99
|
|
| 54 | 123953 | 123953 - NLA LABEL |
$2.99
|
