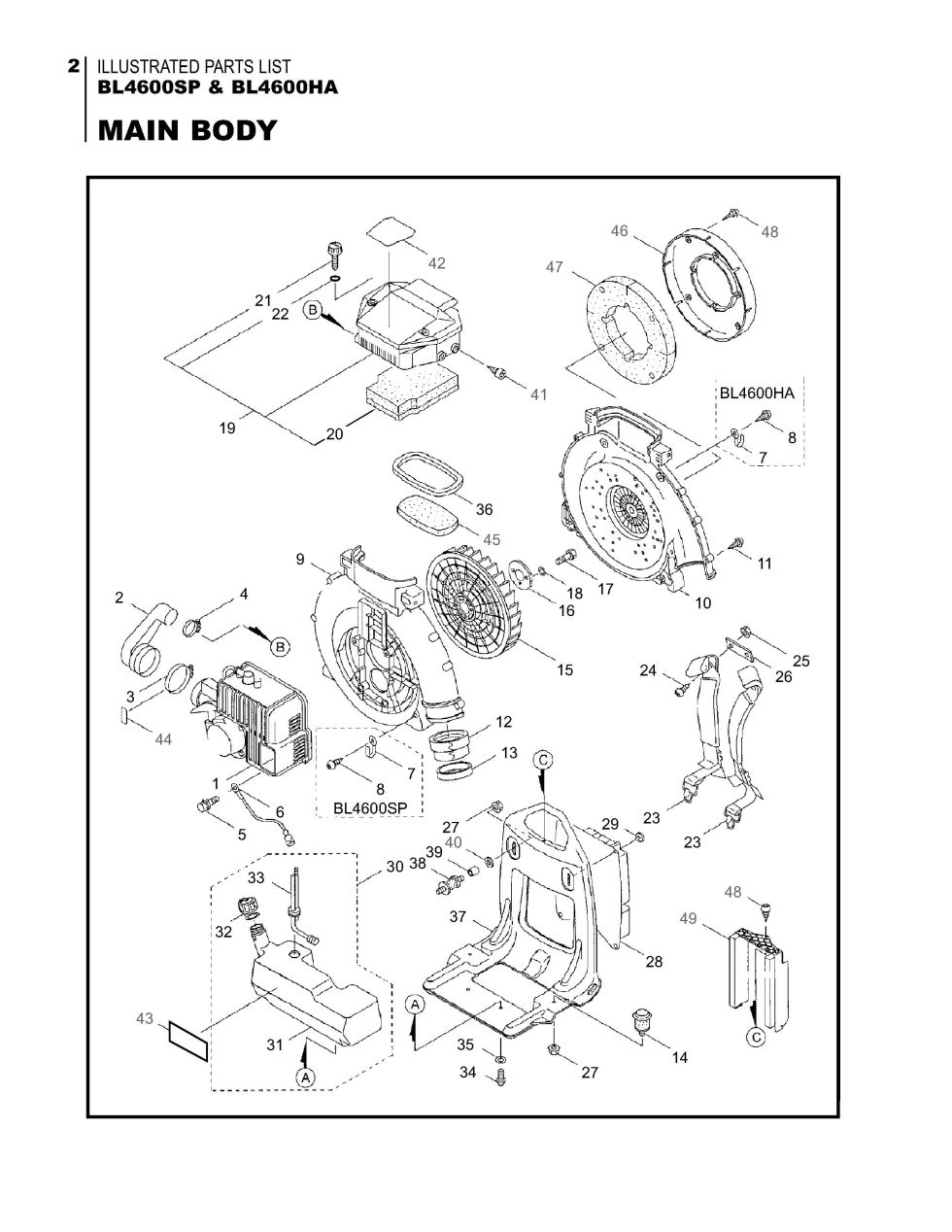

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4600HA and BL4600SP. You have selected the Main Body diagram for the Maruyama BL4600HA and BL4600SP Blowers. Below you will find an interactive part diagram for the BL4600HA and BL4600SP Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4600HA and BL4600SP parts not shown in this diagram you may select from one of the other BL4600HA and BL4600SP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 121787 | 121787 - SHROUD |
$66.99
|
|
| 2 | 121753 | 121753 - INLET PIPE |
$28.99
|
|
| 3 | 121755 | 121755 - BAND |
$15.99
|
|
| 4 | 119684 | 119684 - HOSE BAND |
$7.99
|
|
| 5 | 092543 | 092543 - BOLT |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 103550 | 103550 - CLAMP |
$2.99
|
|
| 9 | 120512 | 120512 - FAN CASE |
$93.99
|
|
| 10 | 121788 | 121788 - FAN CASE(S) |
$61.99
|
|
| 11 | 118530 | 118530 - USE: 89538 |
$2.99
|
|
| 12 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 13 | 119161 | 119161 - BAND |
$7.99
|
|
| 14 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 15 | 118724 | 118724 - FAN |
$68.99
|
|
| 16 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 17 | 119558 | 119558 - BOLT |
$2.99
|
|
| 18 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 19 | 119364 |
119364 - AIR FILTER ASSY. W/ (obsolete) use part #634055 |
$50.99
|
|
| 20 | 122951 | 122951 - AIR FILTER FOAM & FE |
$24.99
|
|
| 21 | 114463 | 114463 - KNOB |
$8.99
|
|
| 22 | 014187 | 014187 - O-RING |
$2.99
|
|
| 23 | 120625 | 120625 - KNAPSACK BAND |
$30.99
|
|
| 25 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 27 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 28 | 119177 | 119177 - PAD |
$31.99
|
|
| 29 | 100749 | 100749 - PAD RETAINER |
$2.99
|
|
| 30 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 31 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 32 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 33 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 34 | 081414 | 081414 - SCREW |
$2.99
|
|
| 35 | 015479 | 015479 - WASHER |
$2.99
|
|
| 36 | 120536 | 120536 - PACKING |
$19.99
|
|
| 38 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 39 | 120616 | 120616 - SPACER |
$2.99
|
|
| 40 | 120617 | 120617 - WASHER |
$2.99
|
|
| 41 | 120077 | 120077 - SCREW |
$2.99
|
|
| 42 | 121801 | 121801 - LABEL |
$13.99
|
|
| 43 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 44 | 119613 | 119613 - LABEL |
$5.99
|
|
| 45 | 121792 | 121792 - NLA FOAM |
$8.99
|
|
| 46 | 121790 | 121790 - NLA COVER |
$16.99
|
|
| 47 | 121791 | 121791 - FOAM |
$23.99
|
|
| 48 | 120319 | 120319 - USE: 127300 |
$2.99
|
|
| 49 | 121793 | 121793 - NLA COVER |
$31.99
|
