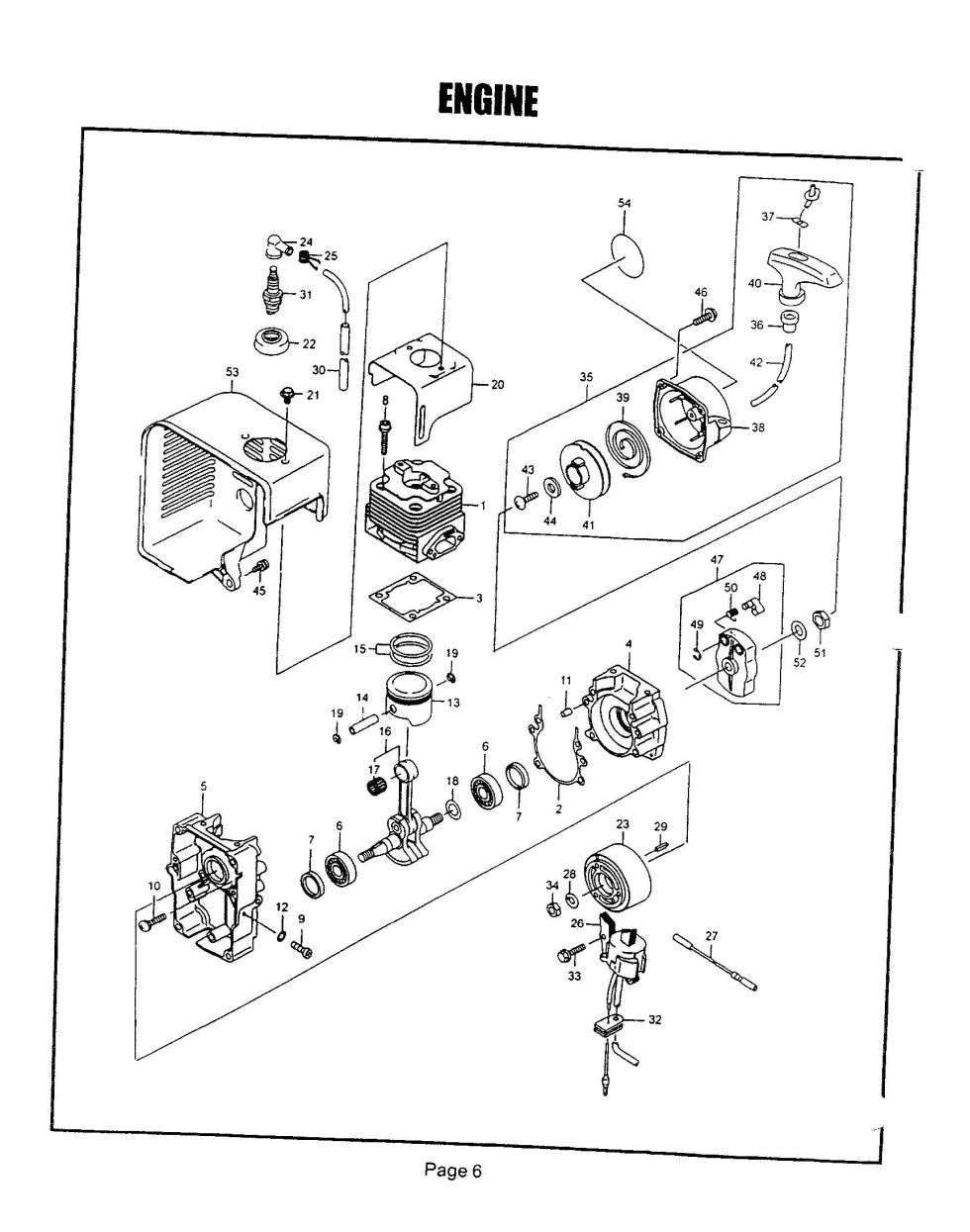

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4500HA, BL4500SP, BL5400HA AND BL5400SP. You have selected the Engine diagram for the Maruyama BL4500HA, BL4500SP, BL5400HA AND BL5400SP Blowers. Below you will find an interactive part diagram for the BL4500HA, BL4500SP, BL5400HA AND BL5400SP Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4500HA, BL4500SP, BL5400HA AND BL5400SP parts not shown in this diagram you may select from one of the other BL4500HA, BL4500SP, BL5400HA AND BL5400SP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 (BL4500) | 626809 | 626809 - CYLINDER |
$134.99
|
|
| 1 (BL5400) | 597281 | 597281 - NLA CYLINDER |
$247.99
|
|
| 2 | 570248 | 570248 - GASKET |
$5.99
|
|
| 3 | 597282 | 597282 - GASKET, CYLINDER |
$11.99
|
|
| 4 | 570246 | 570246 - NLA CRANKCASE |
$162.99
|
|
| 5 | 570247 | 570247 - CRANKCASE |
$202.99
|
|
| 6 | 597283 | 597283 - BEARING |
$29.99
|
|
| 7 | 071320 | 071320 - OIL SEAL |
$19.99
|
|
| 8 | 597284 | 597284 - BOLT |
$8.99
|
|
| 9 | 944619 | 944619 - SCREW |
$2.99
|
|
| 10 | 599880 | 599880 - SCREW |
$2.99
|
|
| 11 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 12 | 943893 | 943893 - GASKET |
$2.99
|
|
| 13 (BL4500) | 579537 | 579537 - USE: 634592 |
$45.99
|
|
| 13 (BL5400) | 570244 | 570244 - PISTON |
$93.99
|
|
| 14 (BL4500) | 599881 | 599881 - PIN, PISTON |
$23.99
|
|
| 14 (BL5400) | 944769 | 944769 - PISTON PIN |
$9.99
|
|
| 15 (BL4500) | 943875 | 943875 - PISTON RING SET |
$34.99
|
|
| 15 (BL5400) | 943304 | 943304 - PISTON RING SET |
$29.99
|
|
| 16 (BL4500) | 626810 | 626810 - CRANKSHAFT ASSY |
$190.99
|
|
| 16 (BL5400) | 570245 | 570245 - CRANKSHAFT ASSY |
$173.99
|
|
| 17 | 597289 | 597289 - USE: 943281 |
$19.99
|
|
| 18a | 597285 | 597285 - SHIM (0.10) |
$2.99
|
|
| 18b | 597286 | 597286 - SHIM (0.20) |
$2.99
|
|
| 18c | 597287 | 597287 - SHIM (0.40) |
$2.99
|
|
| 18d | 597288 | 597288 - SHIM (0.60) |
$2.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 (BL4500) | 580182 | 580182 - SHROUD-ENGINE |
$19.99
|
|
| 20 (BL5400) | 620816 | 620816 - SHROUD |
$19.99
|
|
| 21 | 626817 | 626817 - BOLT |
$6.99
|
|
| 22 (BL4500) | 573289 | 573289 - COVER |
$9.99
|
|
| 22 (BL5400) | 570252 | 570252 - COVER |
$9.99
|
|
| 23 | 597291 | 597291 - FLYWHEEL |
$133.99
|
|
| 24 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 25 | 591533 | 591533 - SPRING |
$2.99
|
|
| 26 | 597262 | 597262 - IGNITION COIL |
$97.99
|
|
| 27 | 597263 | 597263 - LEAD WIRE |
$19.99
|
|
| 28 | 943924 | 943924 - WASHER |
$2.99
|
|
| 29 | 998409 | 998409 - KEY |
$12.99
|
|
| 30 | 998411 | 998411 - TUBE |
$2.99
|
|
| 31 | 626811 | 626811 - NLA SPARK PLUG BPMR7 |
$25.99
|
|
| 32 | 597293 | 597293 - GROMMET |
$10.99
|
|
| 33 | 943457 | 943457 - BOLT |
$2.99
|
|
| 34 | 998410 | 998410 - NUT |
$6.99
|
|
| 35 (BL4500) | 579570 | 579570 - RECOIL STARTER ASSY |
$88.99
|
|
| 35 (BL5400) | 998413 | 998413 - RECOIL STARTER ASSY |
$100.99
|
|
| 36 | 998438 | 998438 - ROPE GUIDE |
$17.99
|
|
| 37 | 944502 | 944502 - WASHER |
$8.99
|
|
| 38 (BL4500) | 579568 | 579568 - RECOIL CASE |
$31.99
|
|
| 38 (BL5400) | 998439 | 998439 - RECOIL CASE |
$57.99
|
|
| 39 (BL4500) | 572955 | 572955 - SPRING |
$31.99
|
|
| 39 (BL5400) | 998435 | 998435 - SPRING |
$33.99
|
|
| 40 | 998437 | 998437 - RECOIL STARTER HANDL |
$27.99
|
|
| 41 (BL4500) | 579571 | 579571 - RECOIL REEL |
$27.99
|
|
| 41 (BL5400) | 998434 | 998434 - RECOIL REEL |
$35.99
|
|
| 42 (BL4500) | 579572 | 579572 - ROPE |
$15.99
|
|
| 42 (BL5400) | 998436 | 998436 - ROPE |
$24.99
|
|
| 43 | 944801 | 944801 - USE: 570720 |
$2.99
|
|
| 44 (BL4500) | 579574 | 579574 - WASHER |
$2.99
|
|
| 44 (BL5400) | 998433 | 998433 - WASHER |
$2.99
|
|
| 45 | 580184 | 580184 - SCREW |
$2.99
|
|
| 46 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
|
| 47 (BL4500) | 579569 | 579569 - STARTER PAWL ASSY |
$18.99
|
|
| 47 (BL5400) | 998414 | 998414 - STARTER PAWL ASSY |
$33.99
|
|
| 48 | 572938 | 572938 - PAWL |
$17.99
|
|
| 49 | 944226 | 944226 - USE: 13525 |
$2.99
|
|
| 50 (BL4500) | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 50 (BL5400) | 998416 | 998416 - USE: 573319 |
$6.99
|
|
| 51 (BL4500) | 943173 | 943173 - NUT |
$2.99
|
|
| 51 (BL5400) | 998417 | 998417 - NLA NUT |
$2.99
|
|
| 52 (BL4500) | 071190 | 071190 - WASHER |
$2.99
|
|
| 52 (BL5400) | 071344 | 071344 - WASHER |
$2.99
|
|
| 53 (BL4500) | 119384 | 119384 - MUFFLER COVER |
$67.99
|
|
| 53 (BL5400) | 120065 | 120065 - SHROUD |
$56.99
|
|
| 54 (BL4500) | 582171 | 582171 - NLA LABEL |
$5.99
|
|
| 54 (BL5400) | 628096 | 628096 - NLA DECAL |
$14.99
|
