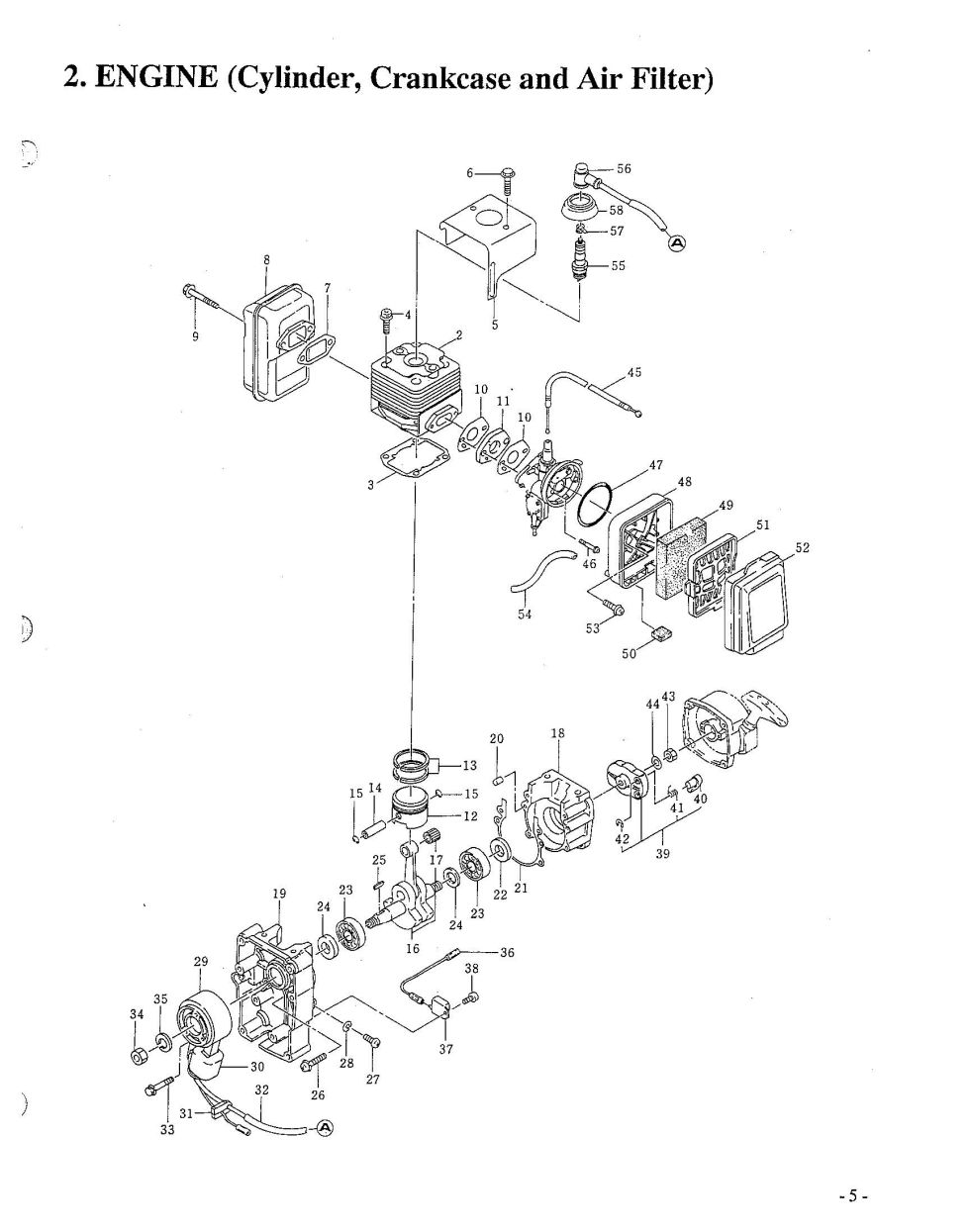

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL400. You have selected the Engine (Cylinder, Crankcase and Air Filter) diagram for the Maruyama BL400 Blowers. Below you will find an interactive part diagram for the BL400 Engine (Cylinder, Crankcase and Air Filter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL400 parts not shown in this diagram you may select from one of the other BL400 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 579535 | 579535 - NLA CYLINDER |
$230.99
|
|
| 3 | 579536 | 579536 - USE: 597282 |
$2.99
|
|
| 4 | 943288 | 943288 - NLA BOLT |
$6.99
|
|
| 5 | 591092 | 591092 - USE: 621448 |
$16.99
|
|
| 6 | 570254 | 570254 - BOLT |
$2.99
|
|
| 7 | 579566 | 579566 - GASKET |
$15.99
|
|
| 8 | 580193 | 580193 - NLA MUFFLER |
$75.99
|
|
| 9 | 577390 | 577390 - USE: 944440 |
$2.99
|
|
| 10 | 578500 | 578500 - GASKET |
$5.99
|
|
| 11 | 580467 | 580467 - NLA INSULATOR |
$14.99
|
|
| 12 | 579537 | 579537 - USE: 634592 |
$45.99
|
|
| 13 | 943875 | 943875 - PISTON RING SET |
$34.99
|
|
| 14 | 944448 | 944448 - NLA PIN PISTON |
$10.99
|
|
| 15 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 16 | 579538 | 579538 - NLA CRANKSHAFT ASSY |
$334.99
|
|
| 17 | 943281 | 943281 - NEEDLE BEARING |
$23.99
|
|
| 18 | 570246 | 570246 - NLA CRANKCASE |
$162.99
|
|
| 19 | 570247 | 570247 - CRANKCASE |
$202.99
|
|
| 20 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 21 | 570248 | 570248 - GASKET |
$5.99
|
|
| 22 | 071320 | 071320 - OIL SEAL |
$19.99
|
|
| 24 | 943020 | 943020 - SHIM |
$2.99
|
|
| 24b | 943022 | 943022 - SHIM |
$2.99
|
|
| 24c | 943023 | 943023 - SHIM |
$2.99
|
|
| 25 | 998409 | 998409 - KEY |
$12.99
|
|
| 26 | 943273 | 943273 - SCREW |
$2.99
|
|
| 27 | 944619 | 944619 - SCREW |
$2.99
|
|
| 28 | 943893 | 943893 - GASKET |
$2.99
|
|
| 29 | 570251 | 570251 - NLA FLYWHEEL |
$179.99
|
|
| 30 | 579526 | 579526 - NLA IGNITION COIL |
$184.99
|
|
| 31 | 943344 | 943344 - GROMMET |
$9.99
|
|
| 32 | 998411 | 998411 - TUBE |
$2.99
|
|
| 33 | 943457 | 943457 - BOLT |
$2.99
|
|
| 34 | 998410 | 998410 - NUT |
$6.99
|
|
| 35 | 943924 | 943924 - WASHER |
$2.99
|
|
| 36 | 998406 | 998406 - NLA LEAD WIRE |
$5.99
|
|
| 37 | 579525 | 579525 - NLA IGNITER |
$129.99
|
|
| 38 | 943572 | 943572 - SCREW |
$2.99
|
|
| 39 | 579569 | 579569 - STARTER PAWL ASSY |
$18.99
|
|
| 40 | 572938 | 572938 - PAWL |
$17.99
|
|
| 41 | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 42 | 944226 | 944226 - USE: 13525 |
$2.99
|
|
| 43 | 943173 | 943173 - NUT |
$2.99
|
|
| 44 | 071190 | 071190 - WASHER |
$2.99
|
|
| 45 | 113078 | 113078 - NLA THROTTLE CABLE |
$24.99
|
|
| 46 | 580469 | 580469 - SCREW |
$2.99
|
|
| 47 | 578509 | 578509 - O-RING |
$5.99
|
|
| 50 | 998391 | 998391 - AIR FILTER ELEMENT |
$2.99
|
|
| 51 | 944740 | 944740 - SCREEN |
$18.99
|
|
| 52 | 578512 | 578512 - NLA AIR FILTER COVER |
$18.99
|
|
| 53 | 944125 | 944125 - NLA SCREW |
$2.99
|
|
| 54 | 998405 | 998405 - NLA TUBE |
$2.99
|
|
| 55 | 573081 | 573081 - USE: 571472 |
No Longer Available Obsolete. |
|
| 56 | 943773 | 943773 - USE: 591532 |
$5.99
|
|
| 57 | 943771 | 943771 - NLA SPRING |
$2.99
|
|
| 58 | 573289 | 573289 - COVER |
$9.99
|
