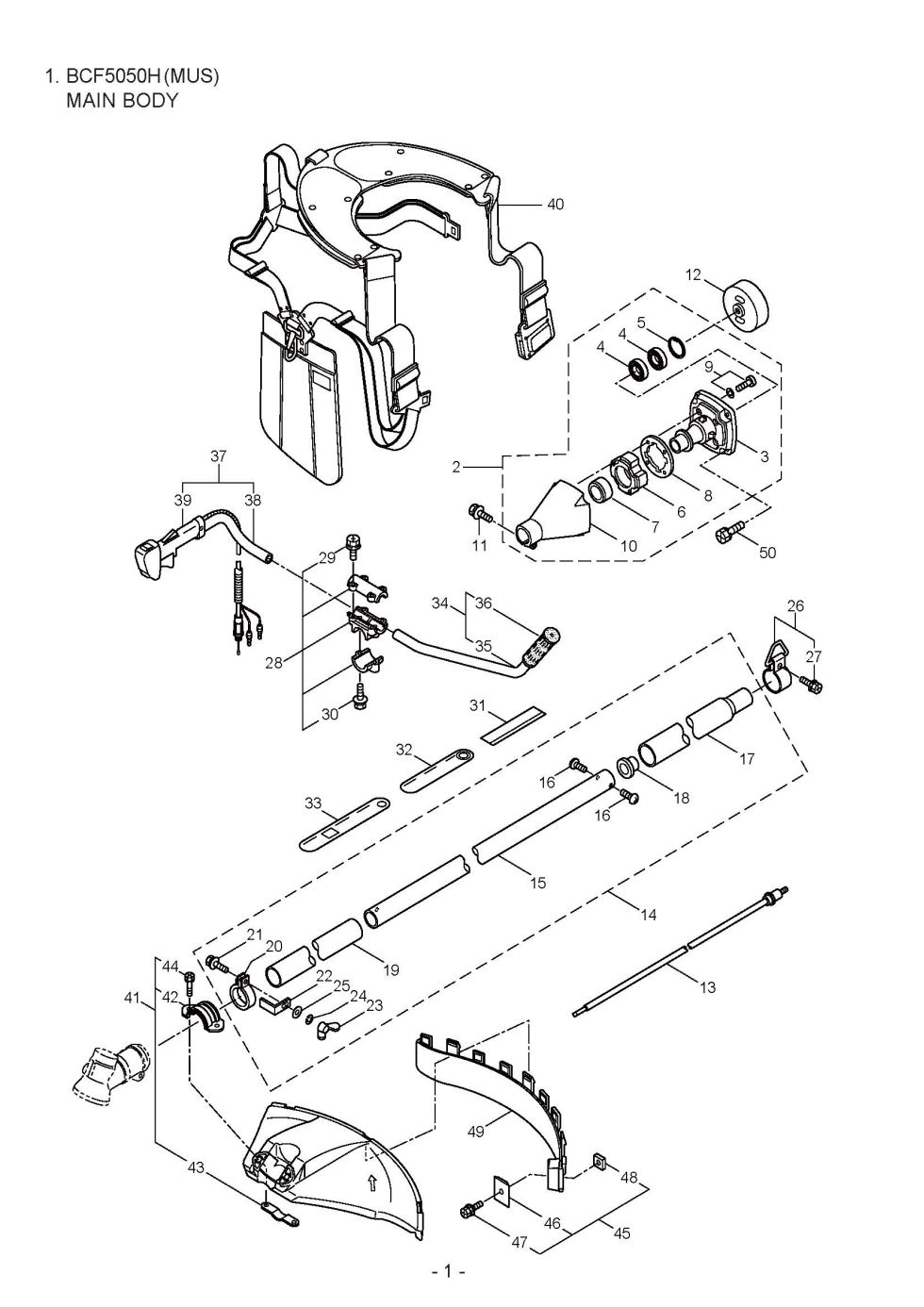

Main Body

Position number SKU Product title Price
2 228329 228329 - NLA - USE: 234162 No Longer Available
Obsolete.
3 227729 227729 - NLA - USE: 234143 No Longer Available
Obsolete.
4 140474 140474 - BEARING
$15.02
5 012380 012380 - SNAP RING
$2.99
6 217045 217045 - BUFFER (A)
$13.02
7 217046 217046 - BUFFER (B)
$5.49
8 217047 217047 - WASHER
$5.06
9 092033 092033 - SCREW(M5X15)
$2.99
10 227728 227728 - DRIVE SHAFT TUBE ADPT BC429H
$31.91
11 092556 092556 - BOLT(M6X30)
$2.99
12 211203 211203 - CLUTCH DRUM
$16.00
13 217897 217897 - DRIVESHAFT
$23.89
14 224994 224994 - DRIVESHAFT TUBE ASSY
$132.65
15 218335 218335 - DRIVESHAFT TUBE
$26.53
16 089580 089580 - SCREW(M3.5X6)
$2.99
17 218324 218324 - DRIVESHAFT TUBE B
$43.27
18 059257 059257 - PIPE BASE
$3.14
19 218325 218325 - SLEEVE
$21.11
20 218237 218237 - BAND
$8.91
22 224995 224995 - USE: 225046 No Longer Available
Obsolete.
24 012502 012502 - SPRING WASHER
$2.99
25 013754 013754 - Washer (M6) No Longer Available
Obsolete.
26 220007 220007 - HANGING BRACKET ASSY
$10.14
27 089743 089743 - BOLT(M6X15)
$2.99
28 217638 217638 - BRACKET ASSY
$15.55
29 092554 092554 - BOLT(M6X25)
$2.99
32 221501 221501 - LABEL
$5.36
33 221502 221502 - LABEL
$7.95
34 228398 228398 - HANDLE ASSY - LEFT
$39.42
35 228399 228399 - Handle (A)
$17.94
36 226512 226512 - Grip
$8.48
37 229074 229074 - HANDLE B ASSY
$87.66
38 228401 228401 - HANDLE
$14.10
39 229005 229005 - THROTTLE LEVER ASSY
$49.12
40 998384 998384 - NLA - USE: 234345 No Longer Available
Obsolete.
41 228303 228303 - SAFETY COVER ASSY
$18.70
42 223179 223179 - Bracket
$2.99
43 223180 223180 - Threaded Bracket
$3.52
44 092555 092555 - BOLT(M6X30)
$2.99
46 227823 227823 - BLADE CUTTER
$3.68
47 817002 817002 - BOLT
$2.99
48 228325 228325 - Nut
$2.99
50 092552 092552 - BOLT (M6X20)
$2.99
