All Diagrams for this Model

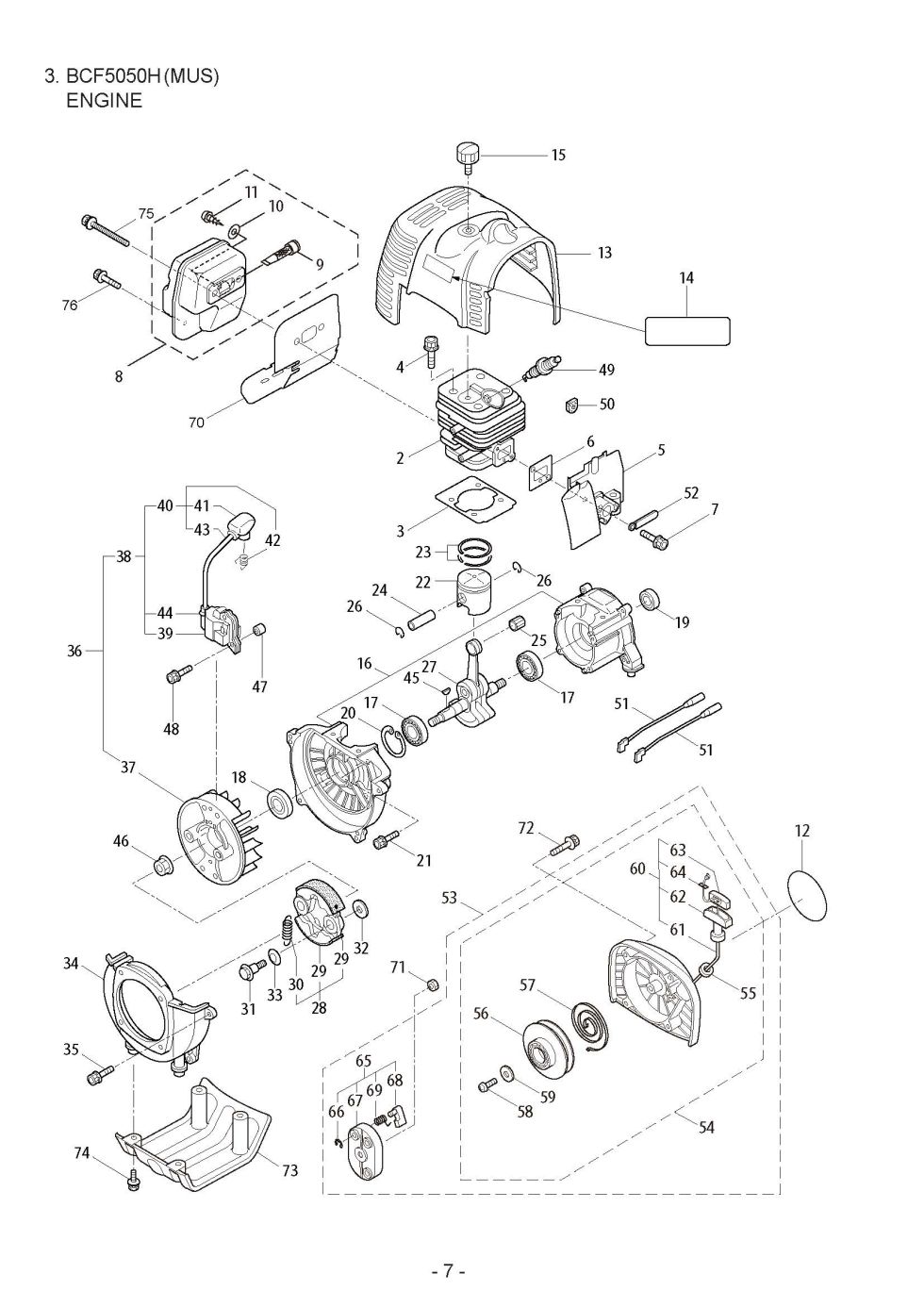

Engine

Position number SKU Product title Price
2 283076 283076 - CYLINDER
$105.42
3 282259 282259 - GASKET
$2.99
4 261612 261612 - BOLT
$2.99
5 282261 282261 - GASKET
$12.06
6 282262 282262 - GASKET
$2.99
7 267290 267290 - CAP SCREW
$2.99
8 283875 283875 - MUFFLER ASSY
$12.61
9 262395 262395 - SPARK ARRESTER M-LINE
$10.72
10 284052 284052 - WASHER
$2.99
11 089530 089530 - SCREW(M3X10)
$2.99
12 284367 284367 - LABEL
$2.99
13 282274 282274 - TOP COVER
$21.15
14 281759 281759 - LABEL
$2.99
15 262556 262556 - KNOB
$2.99
16 282277 282277 - CRANKCASE
$73.53
17 262658 262658 - BEARING
$9.81
18 262660 262660 - OIL SEAL
$2.99
19 262565 262565 - OIL SEAL
$2.99
20 012380 012380 - SNAP RING
$2.99
22 283078 283078 - NLA - USE: 283675 No Longer Available
Obsolete.
23 282941 282941 - PISTON RING
$7.04
24 262749 262749 - PISTON PIN
$6.60
25 262659 262659 - NEEDLE BEARING
$6.81
26 262479 262479 - CLIP PISTON
$2.99
27 283038 283038 - CRANKSHAFT/CONN. ROD ASSY
$111.44
28 282743 282743 - CLUTCH ASSY
$19.88
29 282624 282624 - CLUTCH SHOE
$15.56
30 263617 263617 - SPRING
$5.14
31 283671 283671 - CLUTCH BOLT
$3.09
32 262683 262683 - WASHER
$2.99
33 262682 262682 - WAVE WASHER
$2.99
34 282285 282285 - FAN COVER
$14.44
35 261250 261250 - BOLT M5X20
$2.99
36 282287 282287 - ROTOR ASSY
$69.58
37 282288 282288 - ROTOR
$24.31
38 282289 282289 - IGNITION COIL ASSY
$74.98
39 267572 267572 - COIL
$50.60
40 282290 282290 - CORD ASSEMBLY
$13.56
41 282292 282292 - BOOT
$6.82
42 261075 261075 - CONNECTOR
$2.99
43 282291 282291 - CORD
$2.99
44 261072 261072 - CAP
$2.99
45 261076 261076 - WOODRUFF KEY
$2.99
46 262731 262731 - NUT(M10)
$2.99
47 280381 280381 - SPACER
$2.99
48 283669 283669 - CAP SCREW
$2.99
49 261200 261200 - SPARK PLUG
$12.51
50 281172 281172 - GROMMET
$2.99
51 267492 267492 - LEAD
$3.93
52 264588 264588 - CLAMP
$2.99
53 282717 282717 - NLA RECOIL STARTER ASSY. No Longer Available
Obsolete.
54 282499 282499 - NLA - USE: 285684 No Longer Available
Obsolete.
55 280548 280548 - COLLAR
$2.99
56 282720 282720 - REEL
$5.97
57 282721 282721 - SPRING
$8.82
58 282722 282722 - SCREW
$2.99
59 282723 282723 - WASHER
$2.99
60 282724 282724 - ROPE ASSY
$10.92
61 282725 282725 - STARTER ROPE
$3.48
62 282726 282726 - STARTER GRIP
$3.56
63 282728 282728 - KNOB CAP
$2.99
64 282187 282187 - STOPPER
$3.68
65 284633 284633 - NLA - USE: 285684 No Longer Available
Obsolete.
66 282759 282759 - E-RING
$2.99
67 284634 284634 - STARTER PULLEY BC4320H
$4.00
68 282730 282730 - PAWL
$2.99
69 282758 282758 - PAWL SPRING
$2.99
70 282271 282271 - GASKET
$9.76
72 267191 267191 - CAP SCREW
$2.99
73 282317 282317 - STAND
$8.38
74 281714 281714 - SCREW
$2.99
75 266713 266713 - BUTTON BOLT
$2.99
76 283315 283315 - CAP SCREW
$2.99
