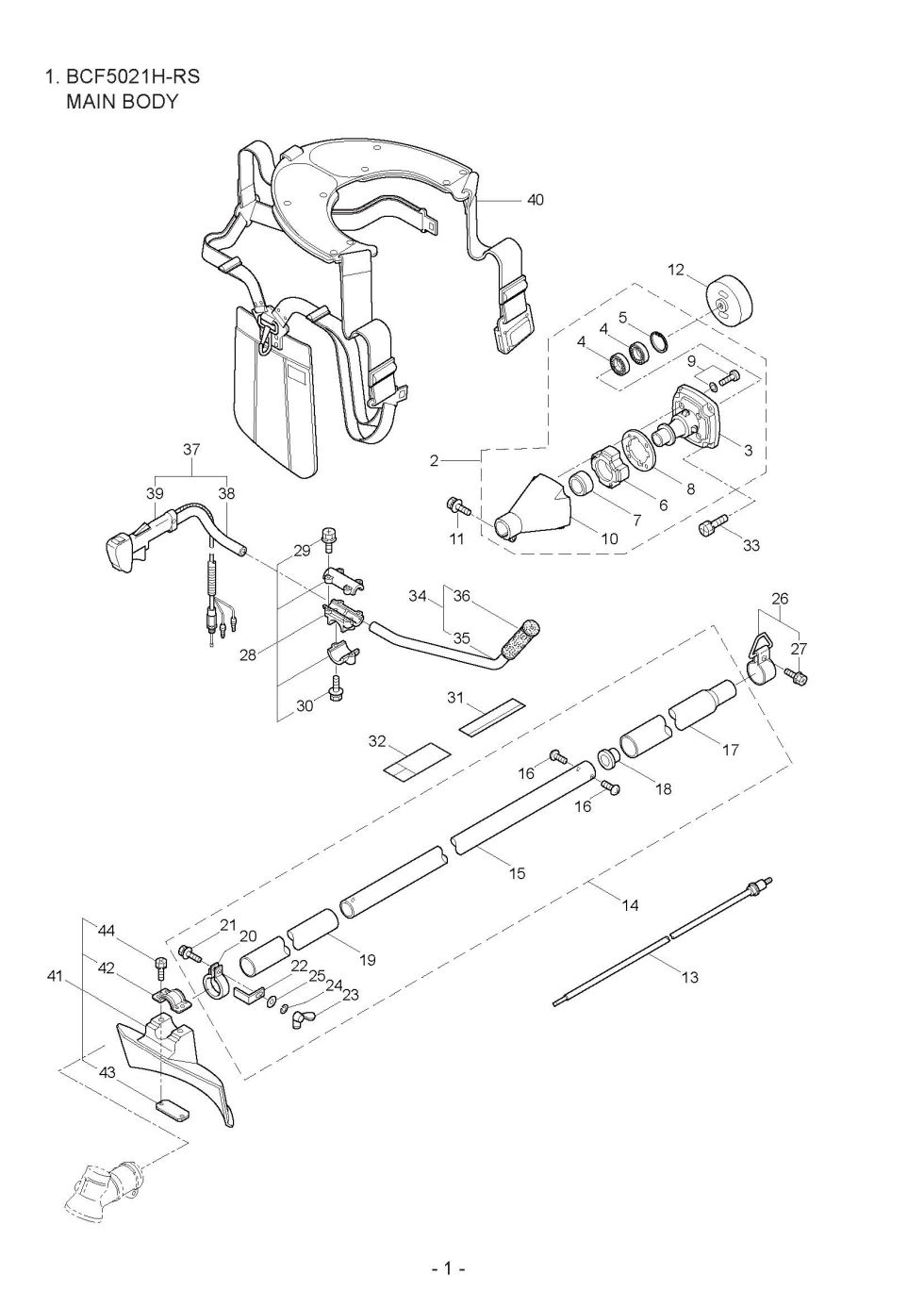

Main Body

Position number SKU Product title Price
2 228329 228329 - USE: 234162
$137.99
3 227729 227729 - USE: 234143
$32.99
4 140474 140474 - BEARING
$22.99
5 012380 012380 - SNAP RING
$2.99
6 217045 217045 - BUFFER (A)
$17.99
7 217046 217046 - BUFFER (B)
$10.99
8 217047 217047 - WASHER
$8.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 227728 227728 - DRIVE SHAFT TUBE ADP
$39.99
11 092556 092556 - BOLT(M6X30)
$2.99
12 211203 211203 - CLUTCH DRUM
$26.99
13 217897 217897 - DRIVESHAFT
$42.99
14 224994 224994 - DRIVESHAFT TUBE ASSY
$155.99
15 218335 218335 - DRIVESHAFT TUBE
$51.99
16 089580 089580 - SCREW(M3.5X6)
$2.99
17 218324 218324 - DRIVESHAFT TUBE B
$53.99
18 059257 059257 - PIPE BASE
$5.99
19 218325 218325 - SLEEVE
$31.99
20 218237 218237 - BAND
$15.99
22 224995 224995 - USE: 225046 No Longer Available
Obsolete.
24 126568 126568 - SPRING WASHER
$2.99
25 127239 127239 - WASHER
$2.99
26 220007 220007 - HANGING BRACKET ASSY
$17.99
27 089743 089743 - BOLT(M6X15)
$2.99
28 217638 217638 - BRACKET ASSY
$27.99
29 092554 092554 - BOLT(M6X25)
$2.99
32 213750 213750 - STICKER
$7.99
33 092552 092552 - BOLT (M6X20)
$2.99
34 228398 228398 - HANDLE ASSY - LEFT
$48.99
35 228399 228399 - Handle (A)
$26.99
36 226512 226512 - Grip
$14.99
37 229074 229074 - HANDLE B ASSY
$108.99
38 228401 228401 - HANDLE
$24.99
39 229005 229005 - THROTTLE LEVER ASSY
$60.99
40 998384 998384 - USE: 234345
$48.99
41 219873 219873 - SAFETY COVER ASSY.
$30.99
42 219874 219874 - BRACKET
$2.99
43 210313 210313 - SAFETY COVER BRACKET
$6.99
44 092555 092555 - BOLT(M6X30)
$2.99
