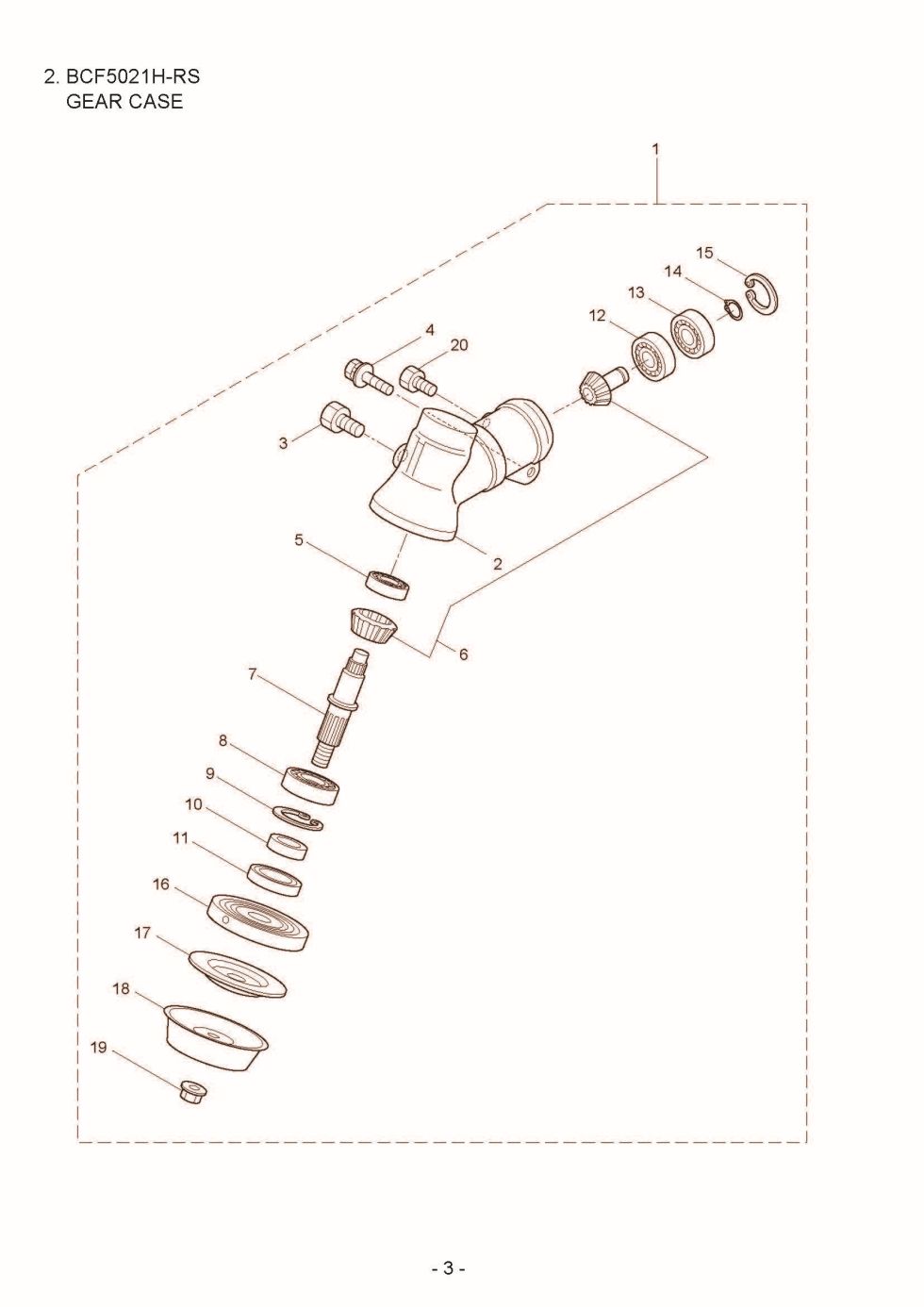

Gearcase

Position number SKU Product title Price
1 229098 229098 - GEAR-CASE-ASSY No Longer Available
Obsolete.
2 219646 219646 - NLA - USE: 236691 No Longer Available
Obsolete.
4 092556 092556 - BOLT(M6X30)
$2.99
5 210560 210560 - BEARING
$6.08
6 227102 227102 - GEAR SET
$44.35
7 229099 229099 - BLADE SHAFT
$30.05
8 022009 022009 - BEARING
$11.62
9 016732 016732 - C SHAPED SNAP RING 3
$2.99
10 212394 212394 - COLLAR
$2.99
11 211818 211818 - OIL SEAL
$5.76
12 014490 014490 - BEARING
$11.16
13 106933 106933 - BEARING
$7.20
14 014210 014210 - C-SHAPED SNAP RING 1
$2.99
15 054676 054676 - SNAP RING
$2.99
16 217060 217060 - BOSS ADAPTER
$14.00
17 217061 217061 - CLAMPING
$23.25
18 227960 227960 - NUT COVER
$9.60
19 227961 227961 - NUT BCF4320H 5020H
$3.14
20 089747 089747 - BOLT(M6X12)
$2.99
