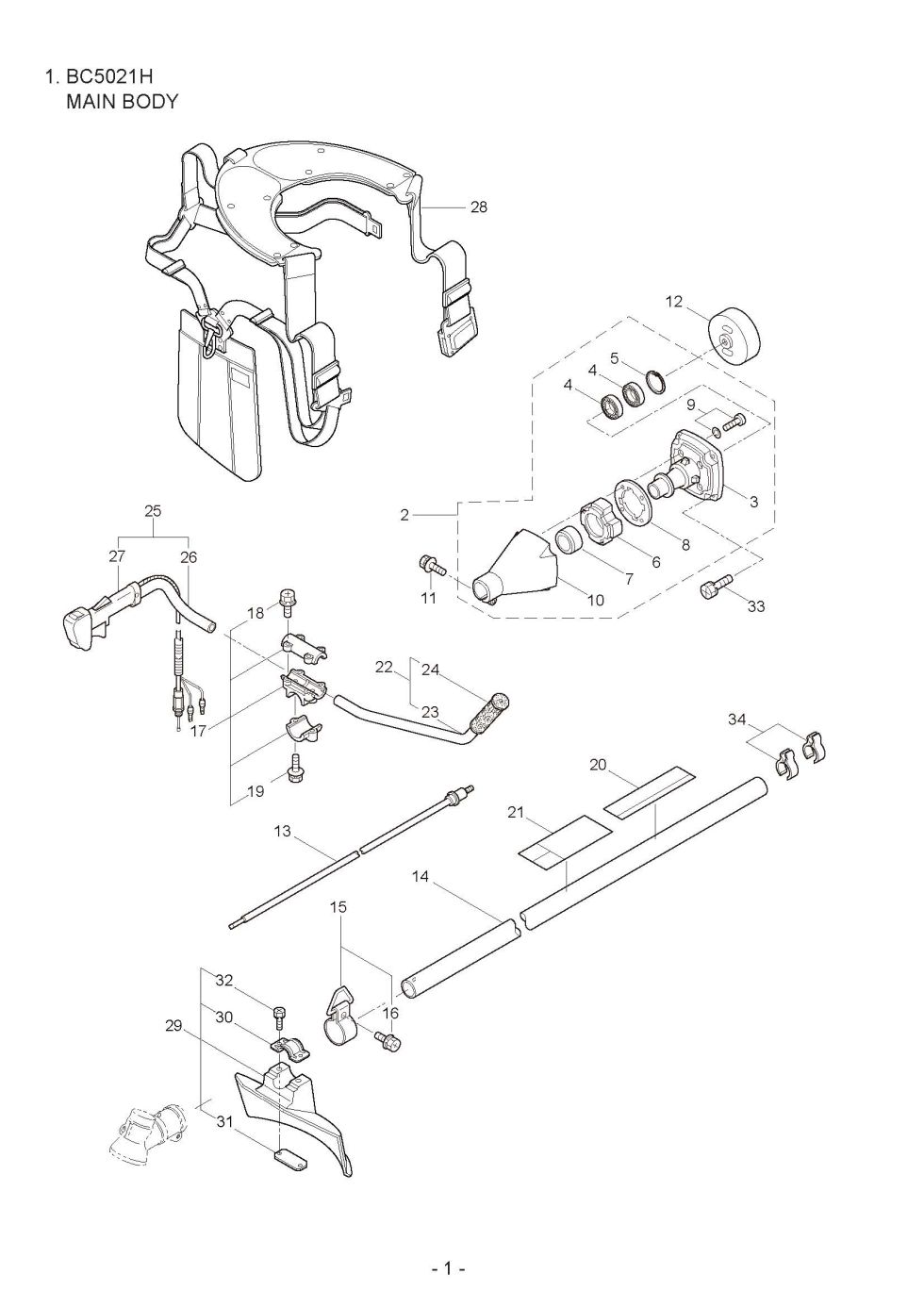

Main Body

Position number SKU Product title Price
2 228329 228329 - USE: 234162
$137.99
3 227729 227729 - USE: 234143
$32.99
4 140474 140474 - BEARING
$22.99
5 012380 012380 - SNAP RING
$2.99
6 217045 217045 - BUFFER (A)
$17.99
7 217046 217046 - BUFFER (B)
$10.99
8 217047 217047 - WASHER
$8.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 227728 227728 - DRIVE SHAFT TUBE ADP
$39.99
11 092556 092556 - BOLT(M6X30)
$2.99
12 211203 211203 - CLUTCH DRUM
$26.99
13 217897 217897 - DRIVESHAFT
$42.99
14 217900 217900 - DRIVESHAFT TUBE ASSY
$70.99
15 217850 217850 - HANGING BRACKET ASSY
$20.99
16 092548 092548 - BOLT M5X15
$2.99
17 217638 217638 - BRACKET ASSY
$27.99
18 092554 092554 - BOLT(M6X25)
$2.99
21 213750 213750 - STICKER
$7.99
22 228398 228398 - HANDLE ASSY - LEFT
$48.99
23 228399 228399 - Handle (A)
$26.99
24 226512 226512 - Grip
$14.99
25 229074 229074 - HANDLE B ASSY
$108.99
26 228401 228401 - HANDLE
$24.99
27 229005 229005 - THROTTLE LEVER ASSY
$60.99
28 998384 998384 - USE: 234345
$48.99
29 219873 219873 - SAFETY COVER ASSY.
$30.99
30 219874 219874 - BRACKET
$2.99
31 210313 210313 - SAFETY COVER BRACKET
$6.99
32 092555 092555 - BOLT(M6X30)
$2.99
33 092552 092552 - BOLT (M6X20)
$2.99
34 219161 219161 - WIRE GUIDE
$2.99
