 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

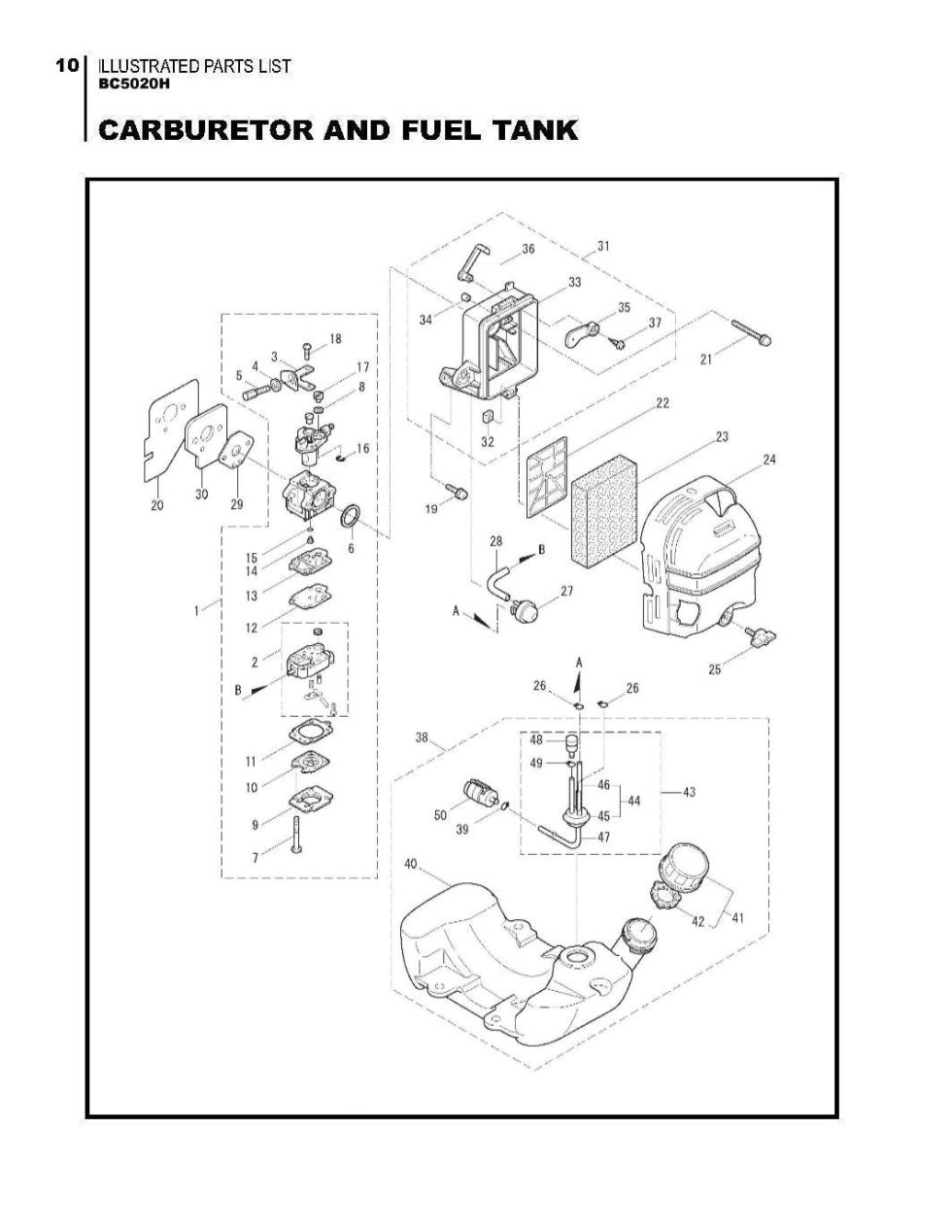

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 282298 | 282298 - CARBURETOR ASSY |
$71.99
|
|
| 2 | 283124 | 283124 - PUMP BODY |
$63.99
|
|
| 3 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 4 | 261878 | 261878 - NUT |
$2.99
|
|
| 5 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 6 | 261657 | 261657 - PACKING |
$10.99
|
|
| 7 | 263737 | 263737 - Screw |
$2.99
|
|
| 8 | 264678 | 264678 - WASHER |
$2.99
|
|
| 9 | 263726 | 263726 - COVER PLATE |
$6.99
|
|
| 10 | 268501 | 268501 - USE: 283905 |
$11.99
|
|
| 11 | 263727 | 263727 - GASKET |
$2.99
|
|
| 12 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 13 | 282576 | 282576 - GASKET |
$8.99
|
|
| 14 | 283125 | 283125 - MAIN JET |
$23.99
|
|
| 15 | 261871 | 261871 - O-RING |
$2.99
|
|
| 16 | 261876 | 261876 - E-RING |
$2.99
|
|
| 17 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 18 | 261875 | 261875 - SCREW |
$2.99
|
|
| 19 | 264807 | 264807 - CAP SCREW M5X16 |
$2.99
|
|
| 20 | 283087 | 283087 - GASKET |
$2.99
|
|
| 21 | 262720 | 262720 - BOLT |
$2.99
|
|
| 22 | 282481 | 282481 - PLATE |
$2.99
|
|
| 23 | 282306 | 282306 - ELEMENT |
$6.99
|
|
| 24 | 282307 | 282307 - CLEANER COVER |
$12.99
|
|
| 25 | 281438 | 281438 - KNOB |
$7.99
|
|
| 26 | 261117 | 261117 - CLIP |
$2.99
|
|
| 27 | 282299 | 282299 - PUMP |
$16.99
|
|
| 28 | 282512 | 282512 - PIPE NE420 NE500 |
$2.99
|
|
| 29 | 282301 | 282301 - GASKET |
$2.99
|
|
| 30 | 283086 | 283086 - GASKET |
$6.99
|
|
| 31 | 282302 | 282302 - CASE ASSY |
$19.99
|
|
| 32 | 269423 | 269423 - NUT |
$2.99
|
|
| 33 | 282303 | 282303 - CASE BODY |
$14.99
|
|
| 34 | 282484 | 282484 - Sleeve |
$2.99
|
|
| 35 | 282304 | 282304 - VALVE |
$2.99
|
|
| 36 | 282305 | 282305 - LEVER |
$2.99
|
|
| 37 | 269032 | 269032 - SCREW |
$2.99
|
|
| 38 | 283487 | 283487 - TANK ASSY |
$66.99
|
|
| 40 | 282310 | 282310 - TANK |
$30.99
|
|
| 41 | 269201 |
269201 - USE: 281565 (obsolete) use part #281565 |
$8.99
|
|
| 42 | 269377 |
269377 - GASKET (obsolete) use part #287058 |
$10.99
|
|
| 43 | 282312 | 282312 - FUEL PIPE ASSY |
$30.99
|
|
| 45 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 46 | 282511 | 282511 - PIPE |
$14.99
|
|
| 47 | 262649 | 262649 - FUEL PIPE |
$2.99
|
|
| 48 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 50 | 267328 |
267328 - FUEL FILTER ASSY (obsolete) use part #277887 |
$11.99
|
