 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

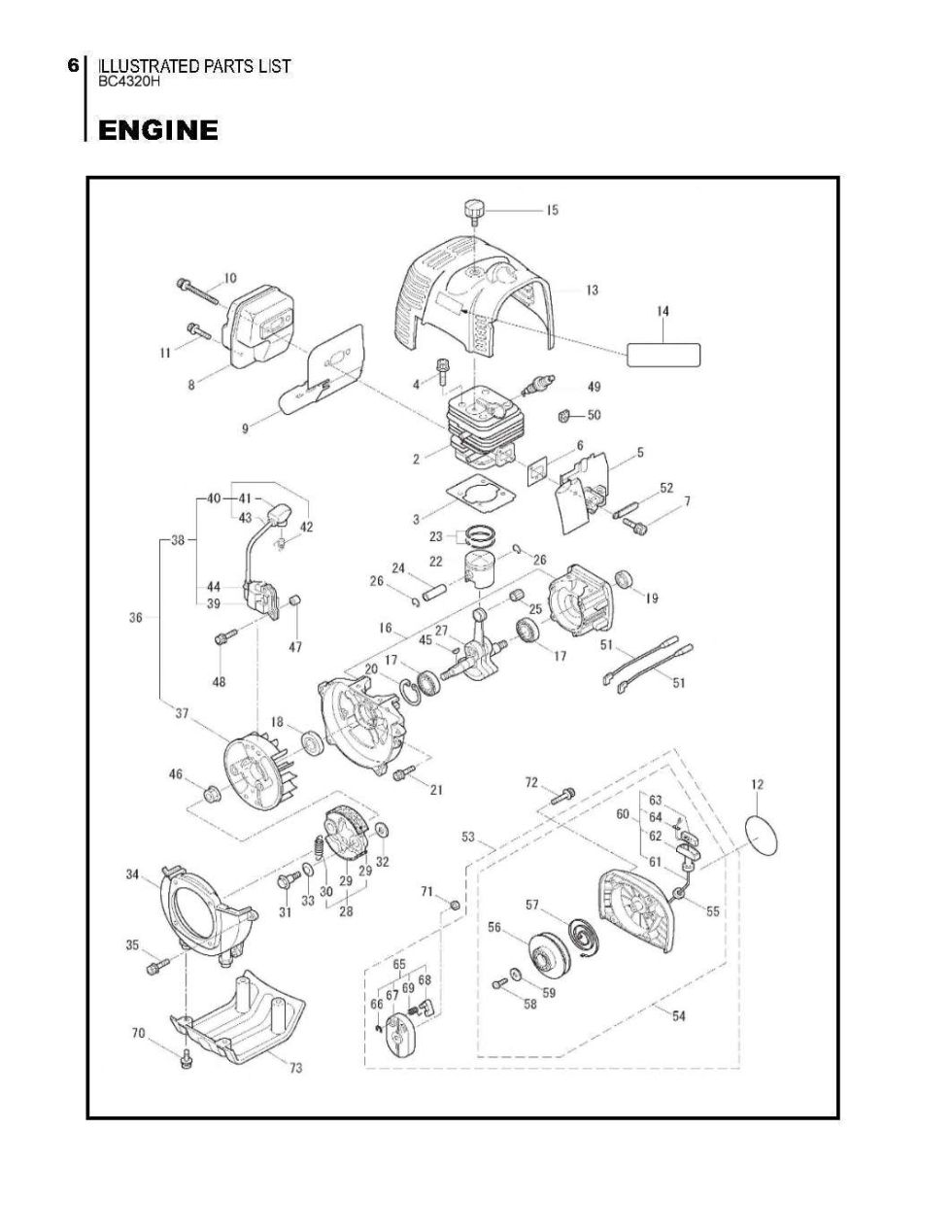

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 282257 | 282257 - CYLINDER |
$170.99
|
|
| 3 | 282259 | 282259 - GASKET |
$2.99
|
|
| 4 | 261612 | 261612 - BOLT |
$2.99
|
|
| 5 | 282261 | 282261 - GASKET |
$21.99
|
|
| 6 | 282262 | 282262 - GASKET |
$2.99
|
|
| 7 | 267290 | 267290 - CAP SCREW |
$2.99
|
|
| 8 | 282264 | 282264 - MUFFLER ASSY |
$24.99
|
|
| 9 | 282271 | 282271 - GASKET |
$17.99
|
|
| 10 | 266713 | 266713 - BUTTON BOLT |
$5.99
|
|
| 11 | 283315 | 283315 - CAP SCREW |
$2.99
|
|
| 12 | 283573 | 283573 - LABEL |
$2.99
|
|
| 13 | 282274 | 282274 - TOP COVER |
$31.99
|
|
| 14 | 281759 | 281759 - LABEL |
$2.99
|
|
| 15 | 262556 | 262556 - KNOB |
$5.99
|
|
| 16 | 282277 | 282277 - CRANKCASE |
$91.99
|
|
| 17 | 262658 | 262658 - BEARING |
$17.99
|
|
| 18 | 262660 | 262660 - OIL SEAL |
$5.99
|
|
| 19 | 262565 |
262565 - OIL SEAL (obsolete) use part #246471 |
$11.99
|
|
| 20 | 012380 | 012380 - SNAP RING |
$2.99
|
|
| 22 | 265227 | 265227 - PISTON AE240 |
$34.99
|
|
| 23 | 262476 | 262476 - PISTON RING |
$16.99
|
|
| 24 | 262749 | 262749 - PISTON PIN |
$11.99
|
|
| 25 | 262659 | 262659 - NEEDLE BEARING |
$18.99
|
|
| 26 | 262479 | 262479 - CLIP PISTON |
$2.99
|
|
| 27 | 283038 | 283038 - CRANKSHAFT/CONN. ROD |
$138.99
|
|
| 28 | 282743 | 282743 - CLUTCH ASSY |
$29.99
|
|
| 29 | 282624 | 282624 - CLUTCH SHOE |
$23.99
|
|
| 30 | 263617 | 263617 - SPRING |
$9.99
|
|
| 31 | 282321 | 282321 - CLUTCH BOLT |
$5.99
|
|
| 32 | 262683 | 262683 - WASHER |
$2.99
|
|
| 33 | 262682 | 262682 - WAVE WASHER |
$2.99
|
|
| 34 | 282285 | 282285 - FAN COVER |
$28.99
|
|
| 35 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 36 | 282287 | 282287 - ROTOR ASSY |
$86.99
|
|
| 37 | 282288 | 282288 - ROTOR |
$27.99
|
|
| 38 | 282289 | 282289 - IGNITION COIL ASSY |
$92.99
|
|
| 39 | 267572 | 267572 - COIL |
$62.99
|
|
| 40 | 282290 | 282290 - CORD ASSEMBLY |
$20.99
|
|
| 41 | 282292 | 282292 - BOOT |
$11.99
|
|
| 42 | 261075 | 261075 - CONNECTOR |
$2.99
|
|
| 43 | 282291 | 282291 - CORD |
$2.99
|
|
| 44 | 261072 | 261072 - CAP |
$2.99
|
|
| 45 | 261076 | 261076 - WOODRUFF KEY |
$2.99
|
|
| 46 | 262731 | 262731 - NUT(M10) |
$2.99
|
|
| 47 | 268380 | 268380 - USE: 280381 |
$2.99
|
|
| 48 | 261256 | 261256 - BOLT M4X25 |
$2.99
|
|
| 49 | 261200 | 261200 - SPARK PLUG |
$20.99
|
|
| 50 | 281172 | 281172 - GROMMET |
$2.99
|
|
| 51 | 267492 | 267492 - LEAD |
$7.99
|
|
| 52 | 264588 | 264588 - CLAMP |
$2.99
|
|
| 53 | 282717 | 282717 - NLA RECOIL STARTER A |
$28.99
|
|
| 54 | 282499 | 282499 - USE: 285684 |
$54.99
|
|
| 55 | 280548 | 280548 - COLLAR |
$2.99
|
|
| 56 | 282720 | 282720 - REEL |
$10.99
|
|
| 57 | 282721 | 282721 - SPRING |
$15.99
|
|
| 58 | 282722 | 282722 - SCREW |
$2.99
|
|
| 59 | 282723 | 282723 - WASHER |
$2.99
|
|
| 60 | 282724 | 282724 - ROPE ASSY |
$19.99
|
|
| 61 | 282725 | 282725 - STARTER ROPE |
$6.99
|
|
| 62 | 282726 | 282726 - STARTER GRIP |
$6.99
|
|
| 63 | 282728 | 282728 - KNOB CAP |
$2.99
|
|
| 64 | 282187 | 282187 - STOPPER |
$6.99
|
|
| 65 | 282718 | 282718 - NLA STARTER PULLE |
$7.99
|
|
| 66 | 282759 | 282759 - E-RING |
$2.99
|
|
| 67 | 282729 | 282729 - NLA PULLEY |
$10.99
|
|
| 68 | 282730 | 282730 - PAWL |
$2.99
|
|
| 69 | 282758 | 282758 - PAWL SPRING |
$2.99
|
|
| 70 | 281714 | 281714 - SCREW |
$2.99
|
|
| 72 | 267191 | 267191 - CAP SCREW |
$2.99
|
|
| 73 | 282317 | 282317 - STAND |
$14.99
|
