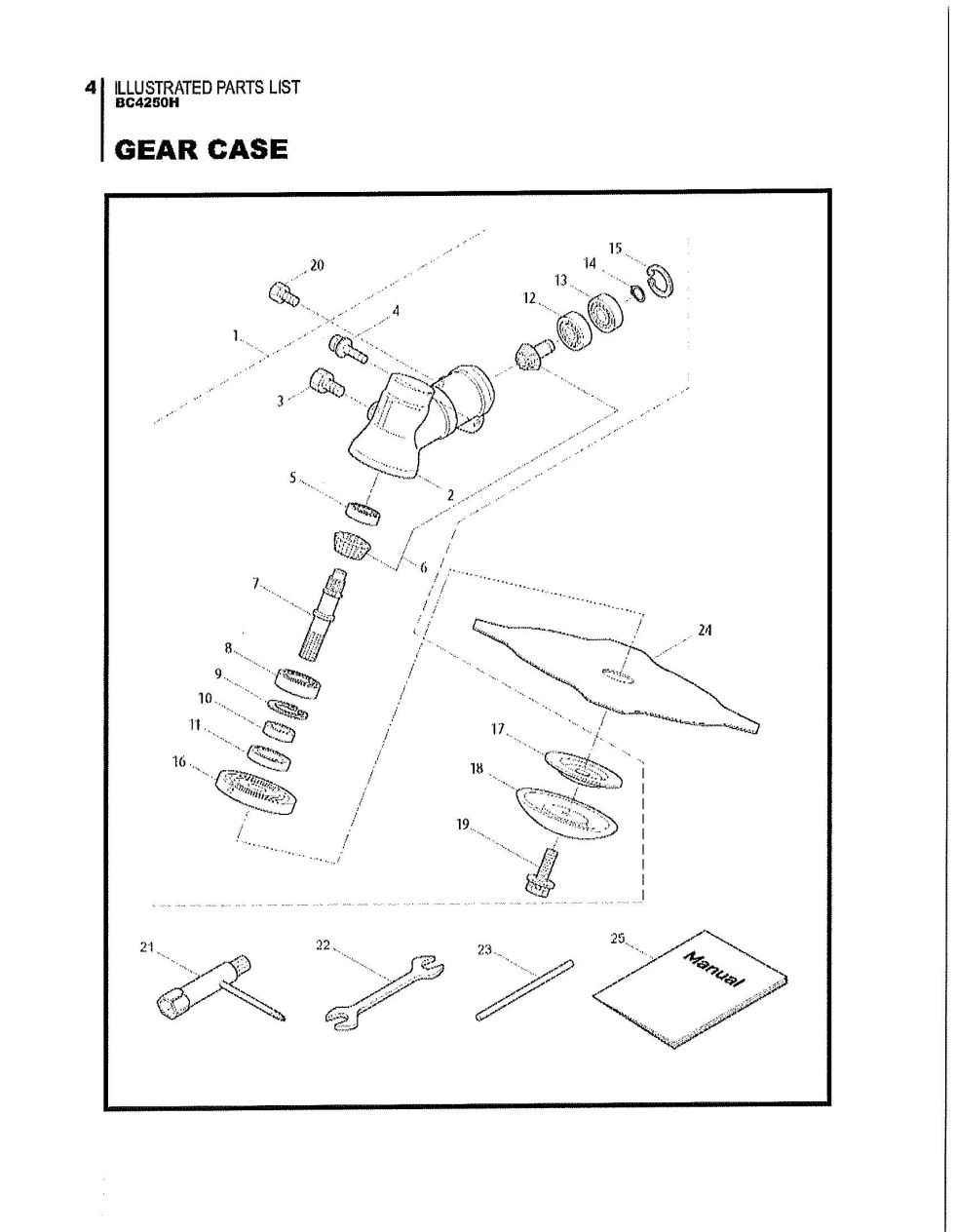

Gearcase

Position number SKU Product title Price
1 219645 219645 - USE: 236691
$121.99
2 219646 219646 - USE: 236691
$134.99
3 089884 089884 - BOLT(M8X10)
$2.99
4 092556 092556 - BOLT(M6X30)
$2.99
5 210560 210560 - BEARING
$10.99
6 227102 227102 - GEAR SET
$48.99
7 217057 217057 - BLADE SHAFT
$23.99
8 022009 022009 - BEARING
$19.99
9 016732 016732 - C SHAPED SNAP RING 3
$2.99
10 212394 212394 - COLLAR
$7.99
11 211818 211818 - OIL SEAL
$10.99
12 014490 014490 - BEARING
$18.99
13 106933 106933 - BEARING
$12.99
14 014210 014210 - C-SHAPED SNAP RING 1
$2.99
15 054676 054676 - SNAP RING
$2.99
16 217060 217060 - BOSS ADAPTER
$32.99
17 217061 217061 - CLAMPING
$34.99
18 210308 210308 - USE: 902311
$17.99
19 215610 215610 - BOLT
$5.99
20 089747 089747 - BOLT(M6X12)
$2.99
21 210418 210418 - BOX WRENCH/DRIVER
$16.99
22 022865 022865 - OFFSET END WRENCH
$2.99
23 210181 210181 - PIN TOOL STOP
$2.99
24 054751 054751 - 4-TOOTH Brush Blade, 10inch w/ 1inch Arbor
$19.99
