 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

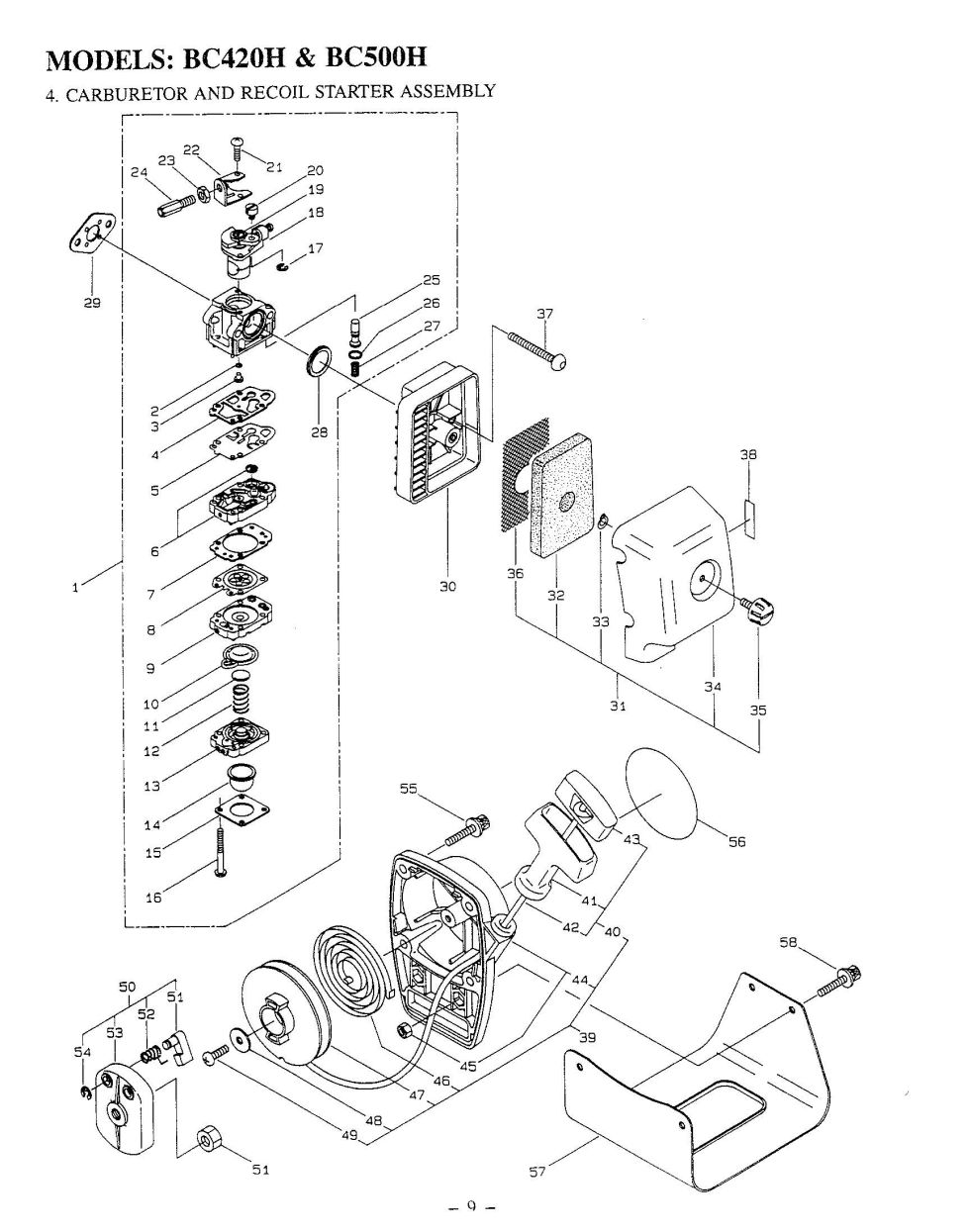

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 263030 | 263030 - NLA CARBURETOR (NO S |
$94.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 263247 | 263247 - JET #50 |
$18.99
|
|
| 4 | 261637 | 261637 - GASKET |
$11.99
|
|
| 5 | 261638 | 261638 - NLA DIAPHRAGM |
$10.99
|
|
| 6 | 263290 | 263290 - PUMP BODY |
$86.99
|
|
| 7 | 261642 | 261642 - GASKET |
$2.99
|
|
| 8 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 9 | 262496 | 262496 - DIAPHRAGM BODY |
$23.99
|
|
| 10 | 261644 | 261644 - DIAPHRAGM |
$14.99
|
|
| 11 | 261650 | 261650 - HOLDER |
$9.99
|
|
| 12 | 261649 | 261649 - SPRING |
$5.99
|
|
| 13 | 264212 | 264212 - PURGE BODY |
$33.99
|
|
| 14 | 264211 | 264211 - PRIMER BULB |
$23.99
|
|
| 15 | 264210 | 264210 - COVER PLATE |
$18.99
|
|
| 16 | 263251 | 263251 - SCREW |
$10.99
|
|
| 17 | 261876 | 261876 - E-RING |
$2.99
|
|
| 18 | 263249 | 263249 - THROTTLE |
$71.99
|
|
| 19 | 261652 | 261652 - PLUG |
$2.99
|
|
| 20 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 21 | 261875 | 261875 - SCREW |
$2.99
|
|
| 22 | 263250 | 263250 - BRACKET |
$23.99
|
|
| 23 | 261878 | 261878 - NUT |
$2.99
|
|
| 24 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 25 | 261653 | 261653 - INJECTION BUTTON |
$16.99
|
|
| 26 | 261655 | 261655 - O-RING |
$2.99
|
|
| 27 | 261656 | 261656 - SPRING |
$7.99
|
|
| 28 | 261657 | 261657 - PACKING |
$10.99
|
|
| 29 | 262587 | 262587 - GASKET |
$2.99
|
|
| 30 | 262640 | 262640 - NLA CASE BODY (NO SU |
$22.99
|
|
| 31 | 262590 | 262590 - USE: 262588 |
$15.99
|
|
| 32 | 262643 | 262643 - FOAM ELEMENT |
$12.99
|
|
| 33 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 34 | 262591 | 262591 - AIR FILTER ASSY |
$13.99
|
|
| 35 | 261018 | 261018 - KNOB |
$7.99
|
|
| 36 | 262727 | 262727 - SCREEN |
$6.99
|
|
| 37 | 262720 | 262720 - BOLT |
$2.99
|
|
| 38 | 261803 | 261803 - NLA LABEL |
$6.99
|
|
| 39 | 263526 | 263526 - RECOIL ASSY |
$47.99
|
|
| 40 | 262631 | 262631 - ROPE ASSY |
$23.99
|
|
| 41 | 262633 | 262633 - STARTER KNOB |
$8.99
|
|
| 42 | 262632 | 262632 - STARTER ROPE |
$8.99
|
|
| 43 | 262981 | 262981 - CAP |
$2.99
|
|
| 44 | 263527 | 263527 - STARTER CASE |
$31.99
|
|
| 45 | 081028 | 081028 - NUT |
$2.99
|
|
| 46 | 262627 | 262627 - SPIRAL SPRING |
$14.99
|
|
| 47 | 262626 | 262626 - PULLEY |
$11.99
|
|
| 48 | 262982 | 262982 - WASHER |
$2.99
|
|
| 49 | 262629 | 262629 - SET SCREW |
$2.99
|
|
| 50 | 262634 | 262634 - PAWL |
$22.99
|
|
| 51 | 262636 | 262636 - RATCHET |
$5.99
|
|
| 52 | 262637 | 262637 - RETURN SPRING |
$2.99
|
|
| 53 | 262635 | 262635 - USE: 262634 |
$19.99
|
|
| 54 | 262638 | 262638 - E-RING |
$2.99
|
|
| 55 | 261257 | 261257 - CAP SCREW M4X16 |
$2.99
|
|
| 56 | 264139 | 264139 - LABEL |
$2.99
|
|
| 57 | 263281 | 263281 - STAND |
$23.99
|
|
| 58 | 261607 | 261607 - BOLT M5X16 |
$2.99
|
