Home :: Parts Lookup :: Trimmers and Brushcutters :: BC326 Engine (Crankshaft, Piston, Tank, Muffler) breadcrumb_end

Model Type:

Model:

Assembly:

All Diagrams for this Model

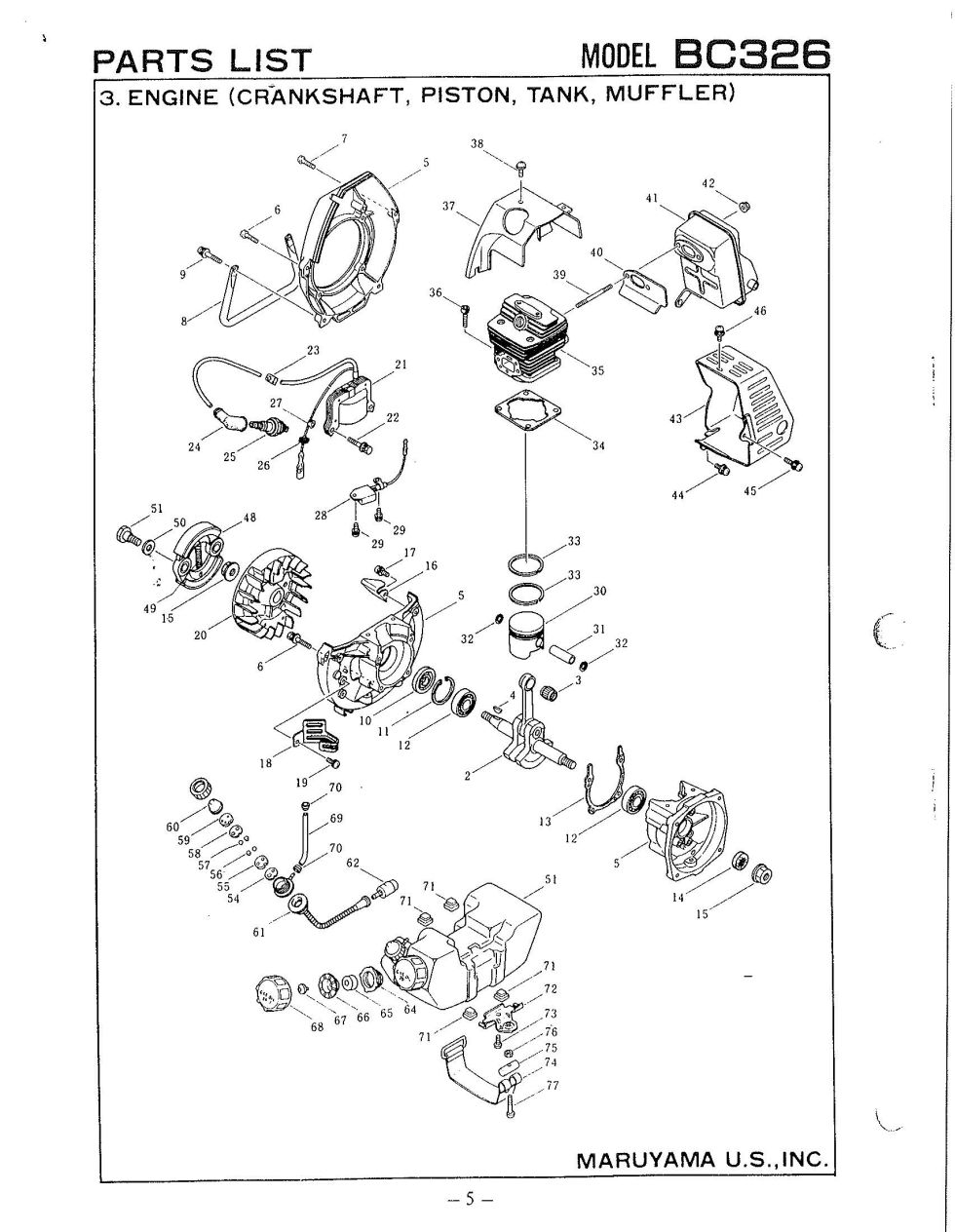

Engine (Crankshaft, Piston, Tank, Muffler)

Position number	SKU	Product title	Price
2	977458	977458 - NLA CRANKSHAFT ASSY	$208.99
3	977459	977459 - NLA NEEDLE BEARING	$29.99
4	972897	972897 - NLA KEY	$11.99
5	996231	996231 - NLA CRANKCASE ASSY	$153.99
6	971819	971819 - NLA CASE SCREW	$2.99
7	912610	912610 - NLA SCREW	$2.99
8	996232	996232 - USE: 991104	No Longer Available Obsolete.
9	990126	990126 - SCREW	$2.99
10	972843	972843 - NLA OIL SEAL	$17.99
11	912607	912607 - NLA SNAP RING	$9.99
12	912608	912608 - USE: 12693	$20.99
13	977501	977501 - NLA CASE PACKING	$2.99
14	912612	912612 - NLA OIL SEAL	$17.99
15	990136	990136 - NLA NUT	$5.99
16	977511	977511 - PLATE	$8.99
17	970899	970899 - NLA SCREW	$2.99
18	977549	977549 - CLAMP	$8.99
19	972891	972891 - NLA SCREW	$2.99
20	977465	977465 - NLA FLYWHEEL	$129.99
21	977466	977466 - NLA IGNITION COIL	$169.99
22	977301	977301 - NLA BOLT	$2.99
23	972870	972870 - GROMMET	$11.99
24	977306	977306 - NLA SPARK PLUG CAP	$21.99
25	910519	910519 - SPARK PLUG	$16.99
26	912618	912618 - NLA DUST SEAL BUSH	$8.99
27	977520	977520 - CLAMP	$8.99
28	991100	991100 - NLA UNIT ELECTRONIC	$71.99
29	977504	977504 - SCREW	$2.99
30	977460	977460 - NLA PISTON PIN SET	$35.99
31	977461	977461 - NLA PISTON PIN	$10.99
32	912616	912616 - NLA SNAP RING	$2.99
33	977462	977462 - NLA PISTON RING	$13.99
34	977502	977502 - NLA CYLINDER PACKING	$2.99
35	977463	977463 - NLA CYLINDER	$136.99
36	977435	977435 - BOLT	$2.99
37	977561	977561 - NLA CYLINDER COVER	$26.99
38	971821	971821 - NLA SCREW	$2.99
39	991147	991147 - NLA BOLT	$11.99
40	977552	977552 - NLA MUFFLER GASKET	$9.99
41	977559	977559 - NLA MUFFLER	$73.99
42	991103	991103 - NLA FLANGE NUT	$6.99
43	996233	996233 - NLA MUFFLER COVER	$30.99
44	979338	979338 - USE: 260015	No Longer Available Obsolete.
45	977522	977522 - NLA SCREW	$2.99
46	971820	971820 - NLA SCREW	$2.99
50	979337	979337 - WASHER	$16.99
51	979336	979336 - NLA CLUTCH BOLT	$13.99
54	972819	972819 - NLA PACKING B	$10.99
55	972811	972811 - NLA SEAT, MACHINED D	$12.99
56	972817	972817 - NLA SPONGE	$2.99
57	972813	972813 - NLA BALL (NO SUPERSE	$13.99
59	972818	972818 - NLA SEAT, MACHINED D	$12.99
60	972814	972814 - USE: 996357	$6.99
61	977571	977571 - USE: 260340	$30.99
62	912658	912658 - USE: 587254	$28.99
64	977315	977315 - USE: 260309	$7.99
65	977535	977535 - USE: 996490	No Longer Available Obsolete.
66	977318	977318 - NLA HOLDER, MACHINED	$11.99
67	977316	977316 - NLA COMBINATION VALV	$14.99
68	977317	977317 - NLA FUEL TANK CAP	$11.99
69	977527	977527 - USE: 260372	$2.99
70	971781	971781 - NLA FUEL PIPE CLIP	$2.99
71	912650	912650 - USE: 971738	$2.99
72	977512	977512 - NLA TANK HANGER	$7.99
73	912630	912630 - NLA SCREW	$2.99
74	977513	977513 - NLA TANK BAND	$21.99
75	972883	972883 - NLA BAND SUPPORT BAR	$9.99
76	979339	979339 - NLA NUT	$2.99
77	912609	912609 - NLA SCREW	$2.99
