Gearcase

Gearcase

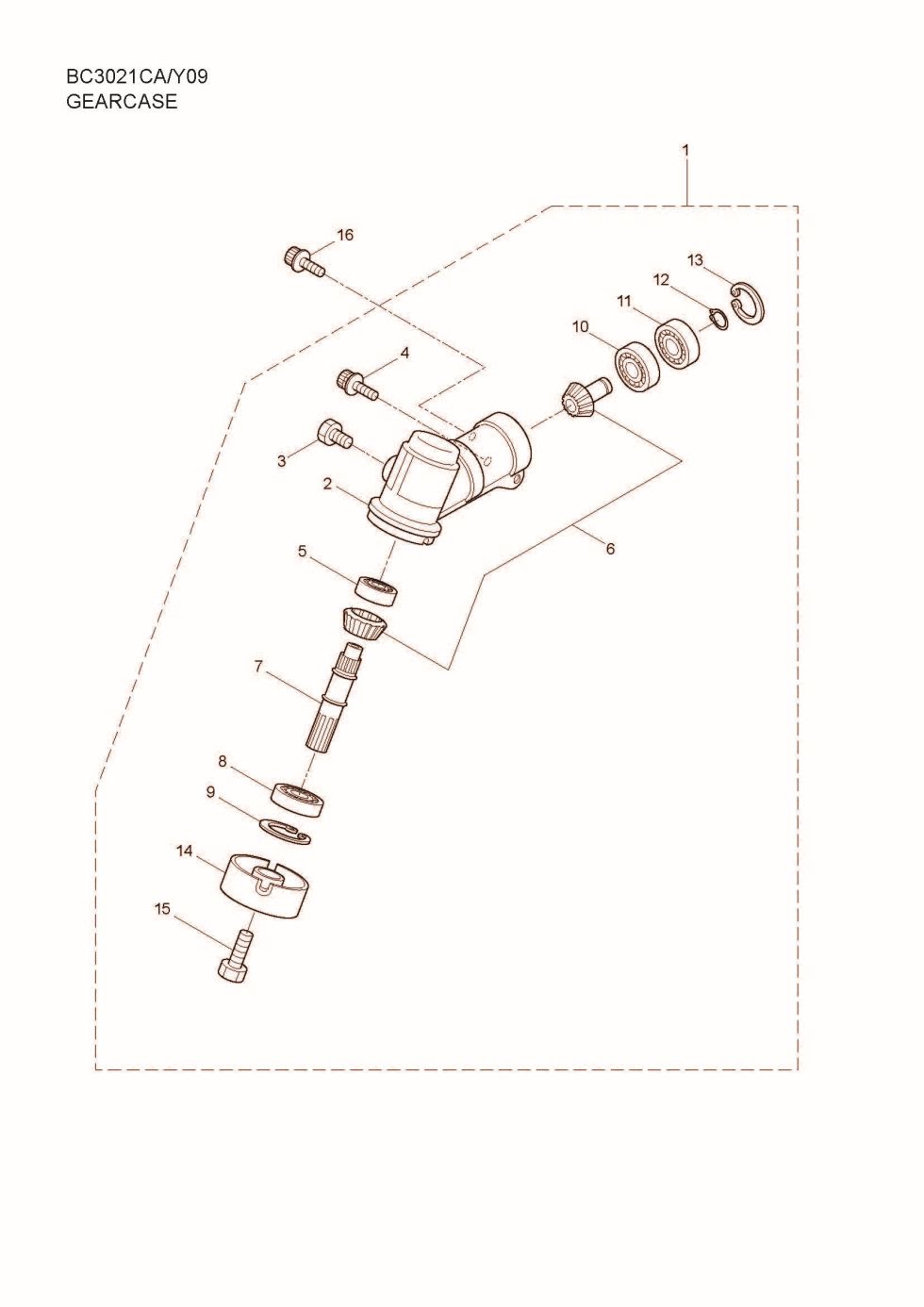

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC3021CA. You have selected the Gearcase diagram for the Maruyama BC3021CA Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC3021CA Gearcase. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC3021CA parts not shown in this diagram you may select from one of the other BC3021CA part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 225959 225959 - GEARCASE ASSY.
$154.99
2 225960 225960 - GEARCASE
$37.99
3 089884 089884 - BOLT(M8X10)
$2.99
4 261246 261246 - CAP SCREW M5X25
$2.99
5 210554 210554 - BEARING
$9.99
6 227106 227106 - GEAR SET (obsolete)
use part #225959
$154.99
7 215762 215762 - BLADE SHAFT
$46.99
8 212999 212999 - BEARING
$21.99
9 055185 055185 - SNAP RING
$2.99
10 210560 210560 - BEARING
$10.99
11 140268 140268 - BEARING
$12.99
12 140269 140269 - USE: 228477
$2.99
13 140270 140270 - SNAP RING
$2.99
14 222890 222890 - BOSS ADAPTER
$12.99
15 221998 221998 - BOLT
$2.99
16 261233 261233 - SCREW
$2.99
