 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

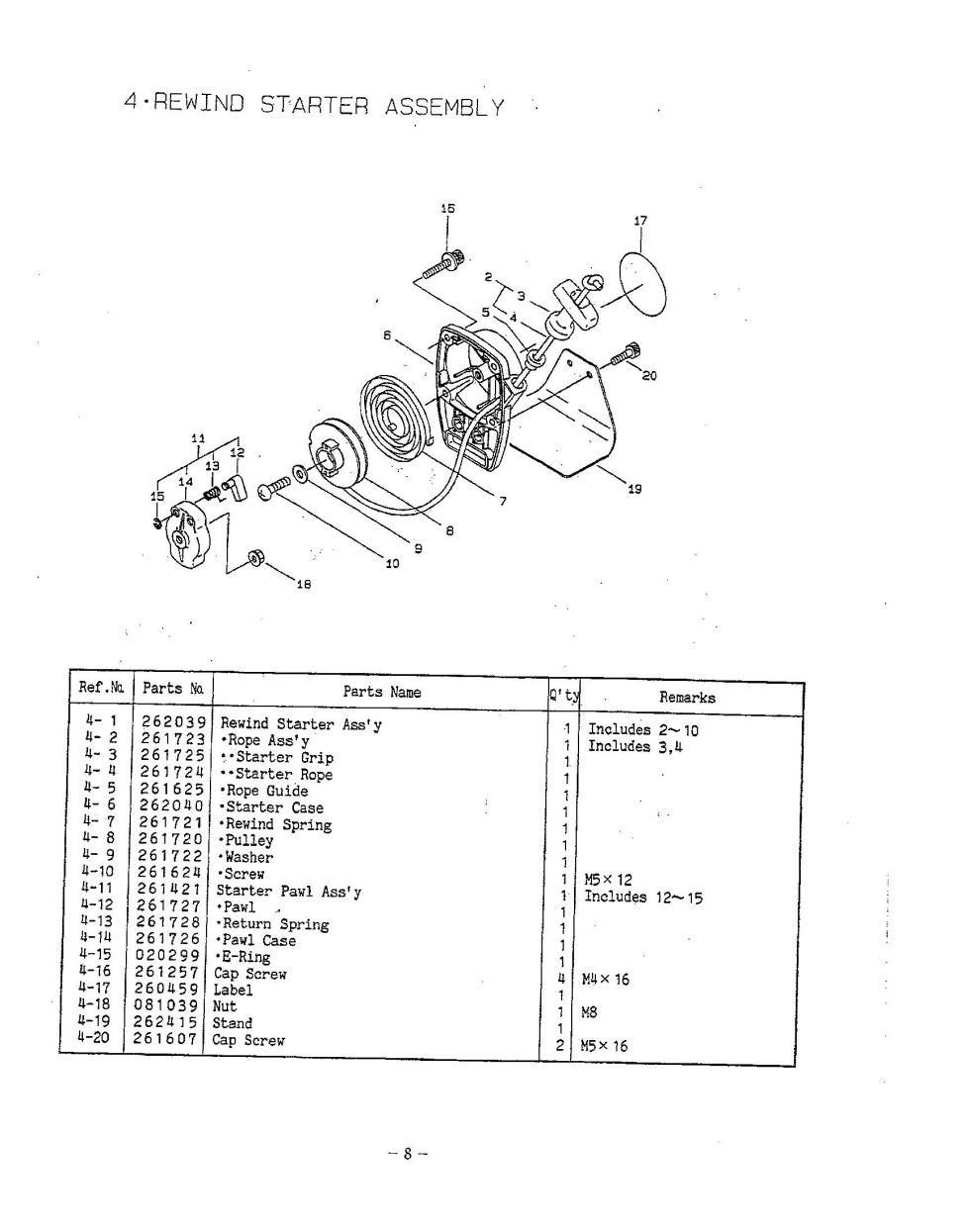

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 262039 | 262039 - REWIND STARTER ASSY |
$45.99
|
|
| 2 | 261723 | 261723 - ROPE ASSY |
$24.99
|
|
| 3 | 261725 | 261725 - STARTER GRIP |
$9.99
|
|
| 4 | 261724 | 261724 - STARTER ROPE |
$9.99
|
|
| 5 | 261625 | 261625 - NS ROPE GUIDE |
$5.99
|
|
| 6 | 262040 | 262040 - STARTER CASE |
$16.99
|
|
| 7 | 261721 | 261721 - SPIRAL SPRING |
$24.99
|
|
| 8 | 261720 | 261720 - NLA REEL |
$13.99
|
|
| 9 | 261722 | 261722 - NLA WASHER |
$2.99
|
|
| 10 | 261624 | 261624 - NLA SET SCREW |
$2.99
|
|
| 11 | 261421 |
261421 - STARTER PAWL (obsolete) use part #263475 |
$28.99
|
|
| 12 | 261727 | 261727 - NLA PAWL |
$7.99
|
|
| 13 | 261728 | 261728 - RETURN SPRING |
$2.99
|
|
| 14 | 261726 | 261726 - PAWL CASE |
$12.99
|
|
| 15 | 261257 | 261257 - CAP SCREW M4X16 |
$2.99
|
|
| 15 | 020299 | 020299 - E-SHAPED SNAP RING |
$2.99
|
|
| 17 | 260459 | 260459 - LABEL |
$2.99
|
|
| 19 | 262415 | 262415 - USE: 264658 |
$10.99
|
|
| 20 | 261607 | 261607 - BOLT M5X16 |
$2.99
|
