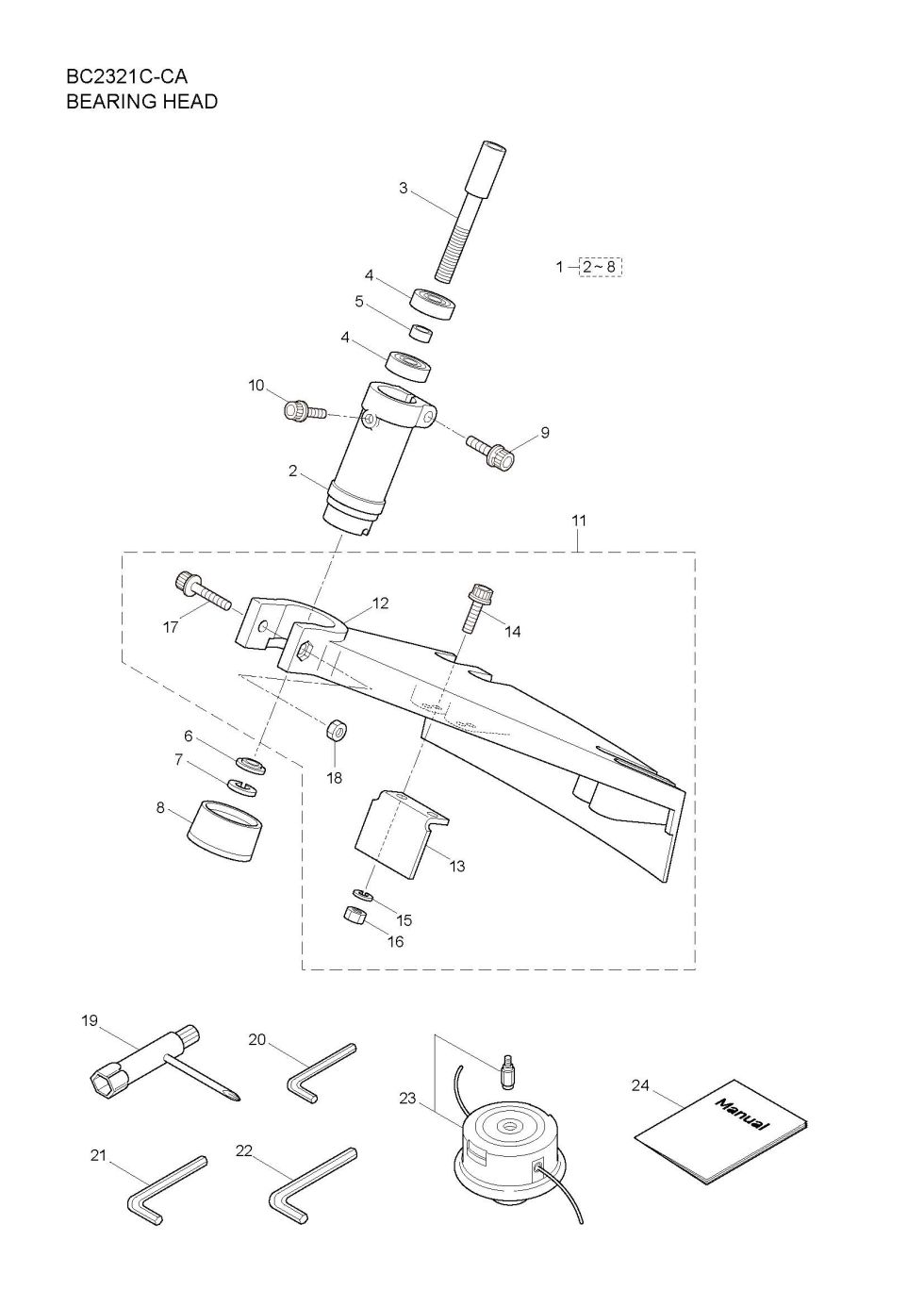

Bearing Head

Bearing Head

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC2321C-CA. You have selected the Bearing Head diagram for the Maruyama BC2321C-CA Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC2321C-CA Bearing Head. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC2321C-CA parts not shown in this diagram you may select from one of the other BC2321C-CA part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 215986 215986 - HEAD CASE ASSY
$89.99
2 215987 215987 - CASE, BEARING
$18.99
3 215988 215988 - ATTACHING SHAFT
$25.99
4 215989 215989 - BEARING
$20.99
5 215990 215990 - SPACER
$2.99
6 215991 215991 - WASHER
$2.99
7 015845 015845 - SPRING WASHER
$2.99
8 215992 215992 - ATTACHING SHAFT ADAP
$20.99
9 261246 261246 - CAP SCREW M5X25
$2.99
10 215993 215993 - CAP SCREW, ALIGNMENT
$2.99
11 229598 229598 - SAFETY COVER ASSY
$30.99
12 215999 215999 - SAFETY COVER
$37.99
13 216000 216000 - STRING CUTTER
$20.99
14 216001 216001 - CAP SCREW
$2.99
15 089901 089901 - WASHER
$2.99
16 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
17 216863 216863 - CAP SCREW
$2.99
19 210418 210418 - BOX WRENCH/DRIVER
$16.99
20 219431 219431 - 3MM HEX WRENCH
$2.99
21 219432 219432 - 4MM HEX WRENCH
$2.99
22 219433 219433 - 5MM ALLEN WRENCH
$2.99
23 840781 840781 - NLA KATANA 4 HEAD
$43.99
