Main Body

Main Body

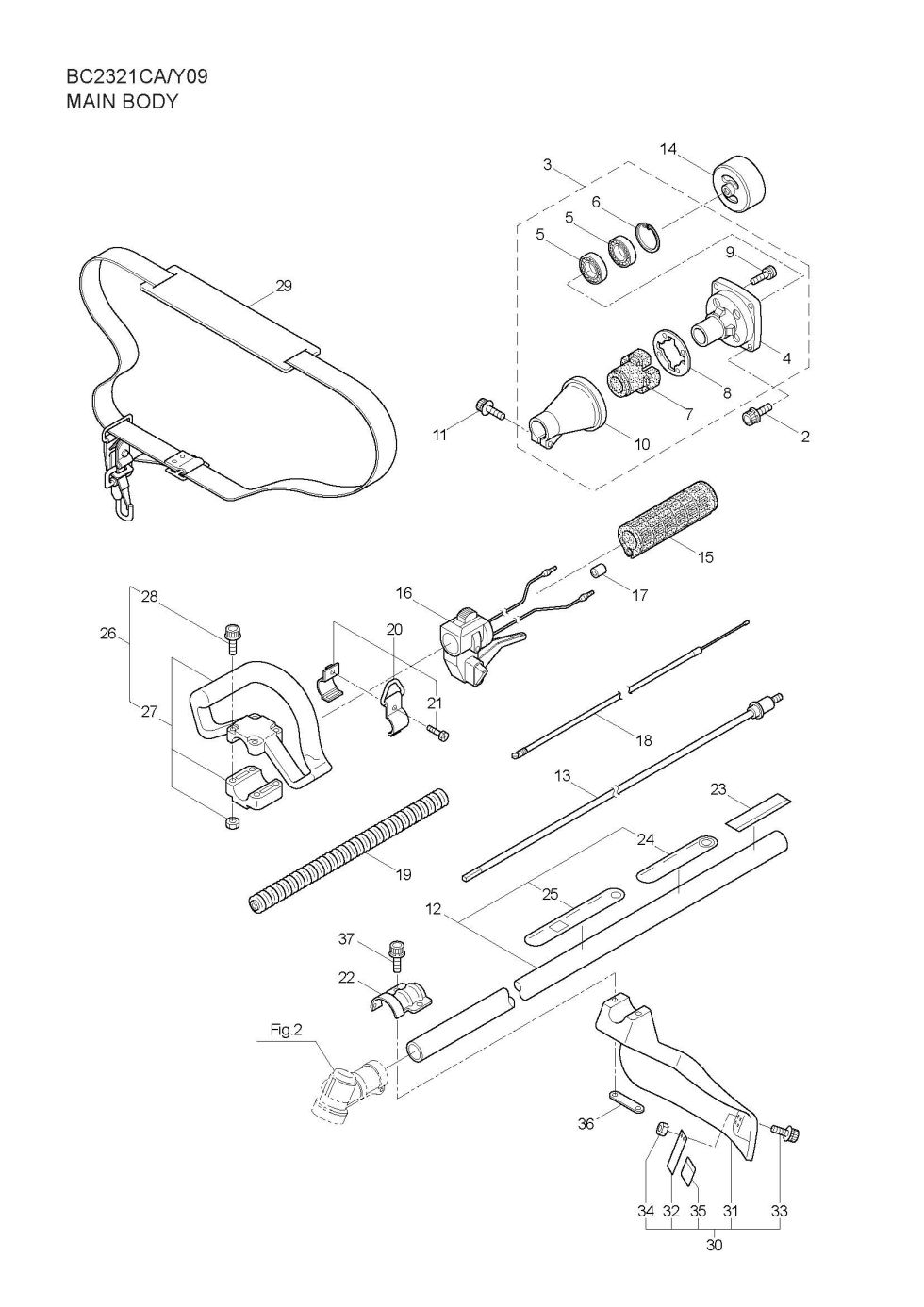

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC2321-CA. You have selected the Main Body diagram for the Maruyama BC2321-CA Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC2321-CA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC2321-CA parts not shown in this diagram you may select from one of the other BC2321-CA part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 261250 261250 - BOLT M5X20
$2.99
3 215512 215512 - CLUTCH CASE ASSY
$150.99
4 214592 214592 - BEARING CASE
$39.99
5 214161 214161 - USE: 102680
$13.99
6 054676 054676 - SNAP RING
$2.99
7 214162 214162 - BUFFER
$28.99
8 214163 214163 - WASHER
$11.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
11 261246 261246 - CAP SCREW M5X25
$2.99
12 220078 220078 - DRIVESHAFT HOUSING
$114.99
13 219268 219268 - DRIVESHAFT ASSY
$52.99
14 054677 054677 - CLUTCH DRUM
$32.99
15 215532 215532 - SHAFT GRIP
$24.99
16 221465 221465 - THROTTLE TRIGGER
$62.99
17 214083 214083 - OUTER GUIDE
$2.99
18 213444 213444 - THROTTLE CABLE
$13.99
19 213548 213548 - PLASTIC TUBE
$2.99
20 054691 054691 - HANGING BRACKET ASSY
$13.99
21 089738 089738 - BOLT
$2.99
22 225962 225962 - BRACKET
$7.99
23 230723 230723 - LABEL
$12.99
24 221501 221501 - LABEL
$9.99
25 221502 221502 - LABEL
$14.99
26 227816 227816 - LOOP HANDLE ASSY
$28.99
27 222139 222139 - USE: 222059
$32.99
28 215608 215608 - CAP SCREW
$2.99
29 220533 220533 - SHOULDER STRAP ASSY
$28.99
30 226300 226300 - SAFETY COVER ASSY
$39.99
31 225961 225961 - SAFETY COVER
$27.99
32 222900 222900 - NLA STRING CUTTER
$8.99
33 227817 227817 - BOLT
$2.99
34 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
35 212972 212972 - STRING CUTTER COVER
$2.99
36 225963 225963 - THREADED BRACKET
$2.99
37 261612 261612 - BOLT
$2.99
