Main Body

Main Body

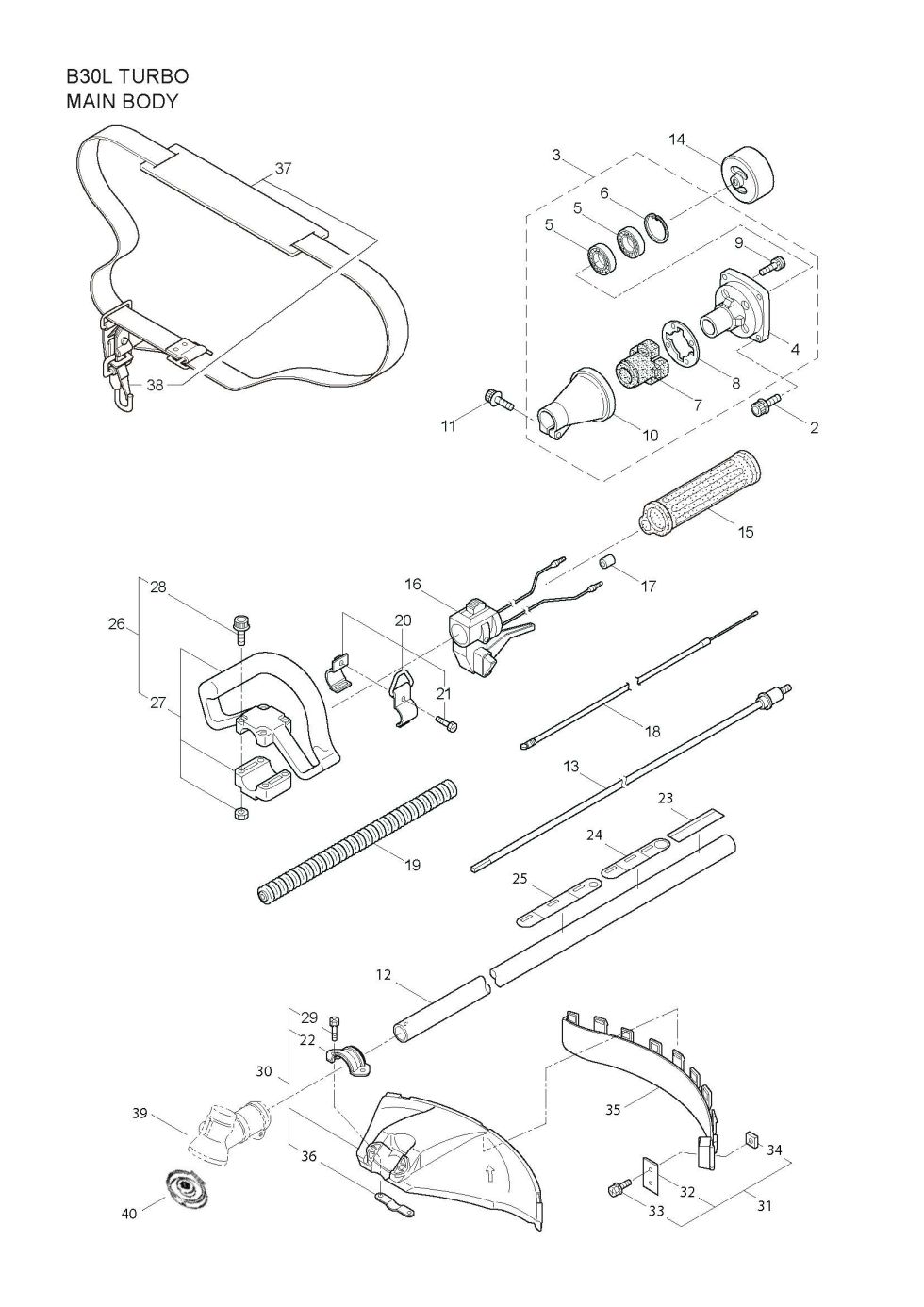

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your B30L TURBO. You have selected the Main Body diagram for the Maruyama B30L TURBO Trimmers and Brushcutters. Below you will find an interactive part diagram for the B30L TURBO Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the B30L TURBO parts not shown in this diagram you may select from one of the other B30L TURBO part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 261250 261250 - BOLT M5X20
$2.99
3 215512 215512 - CLUTCH CASE ASSY
$150.99
4 214592 214592 - BEARING CASE
$39.99
5 214161 214161 - USE: 102680
$13.99
6 054676 054676 - SNAP RING
$2.99
7 214162 214162 - BUFFER
$28.99
8 214163 214163 - WASHER
$11.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
11 261246 261246 - CAP SCREW M5X25
$2.99
12 220078 220078 - DRIVESHAFT HOUSING
$114.99
13 232489 232489 - NLA DRIVE SHAFT (NO (obsolete)
use part #219268
$52.99
14 054677 054677 - CLUTCH DRUM
$32.99
15 215532 215532 - SHAFT GRIP
$24.99
16 221465 221465 - THROTTLE TRIGGER
$62.99
17 214083 214083 - OUTER GUIDE
$2.99
18 213444 213444 - THROTTLE CABLE
$13.99
19 213548 213548 - PLASTIC TUBE
$2.99
20 054691 054691 - HANGING BRACKET ASSY
$13.99
21 089738 089738 - BOLT
$2.99
22 223179 223179 - Bracket
$2.99
23 232024 232024 - USE: 232512 No Longer Available
Obsolete.
24 221501 221501 - LABEL
$9.99
25 221502 221502 - LABEL
$14.99
26 227816 227816 - LOOP HANDLE ASSY
$28.99
27 222139 222139 - USE: 222059
$32.99
28 215608 215608 - CAP SCREW
$2.99
29 092555 092555 - BOLT(M6X30)
$2.99
30 228303 228303 - SAFETY COVER ASSY
$29.99
31 230789 230789 - LINE CUTTER ASSY
$12.99
32 230747 230747 - String Cutter
$8.99
33 817002 817002 - BOLT
$2.99
34 228325 228325 - Nut
$2.99
35 230748 230748 - EXTENSION
$14.99
36 223180 223180 - Threaded Bracket
$6.99
37 220533 220533 - SHOULDER STRAP ASSY
$28.99
38 231657 231657 - HOOK
$6.99
39 232718 232718 - Gearcase(13:25)
$165.99
40 840010 840010 - BLADE FIXTURE
$9.99
